Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Ground-to-Components Index

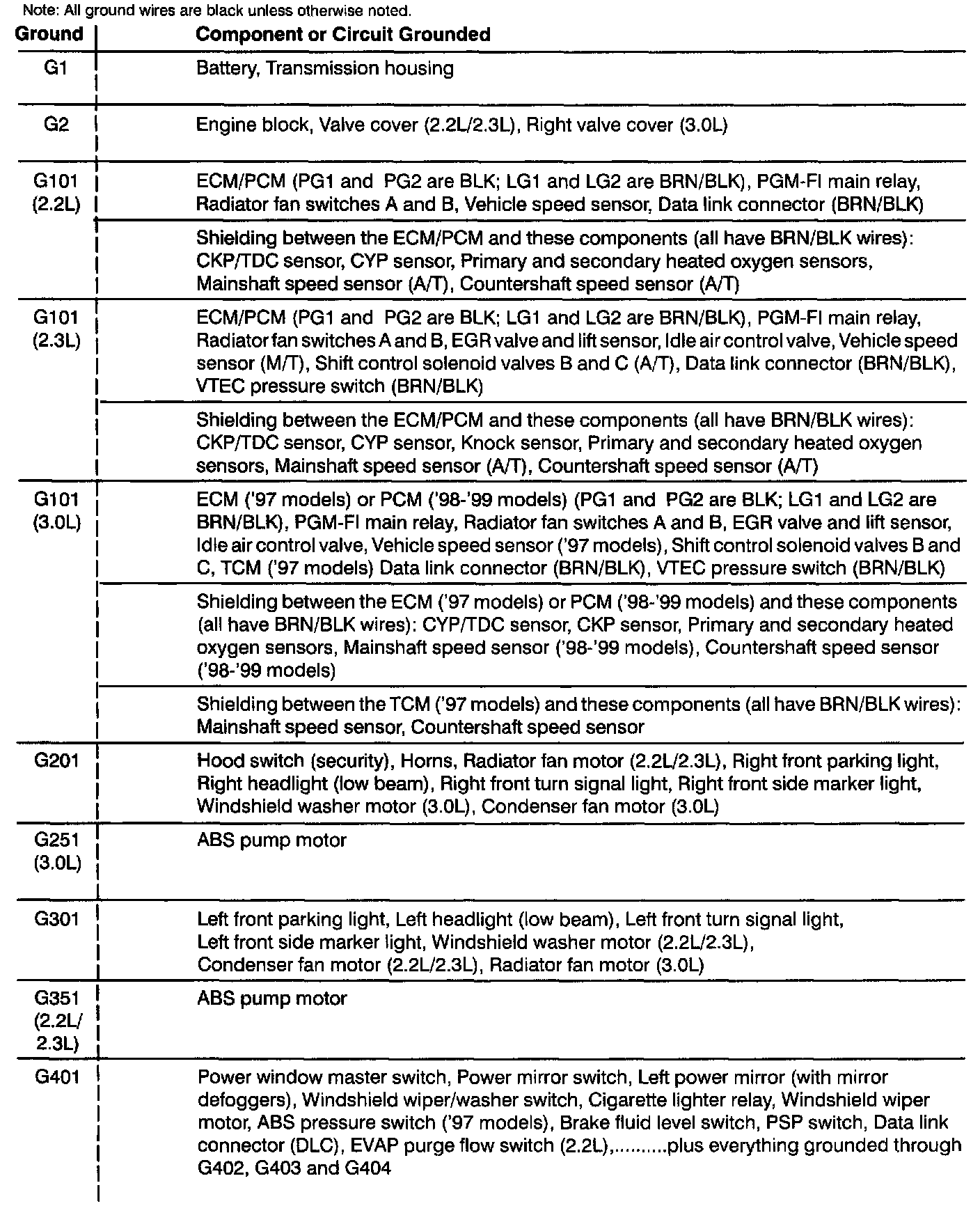

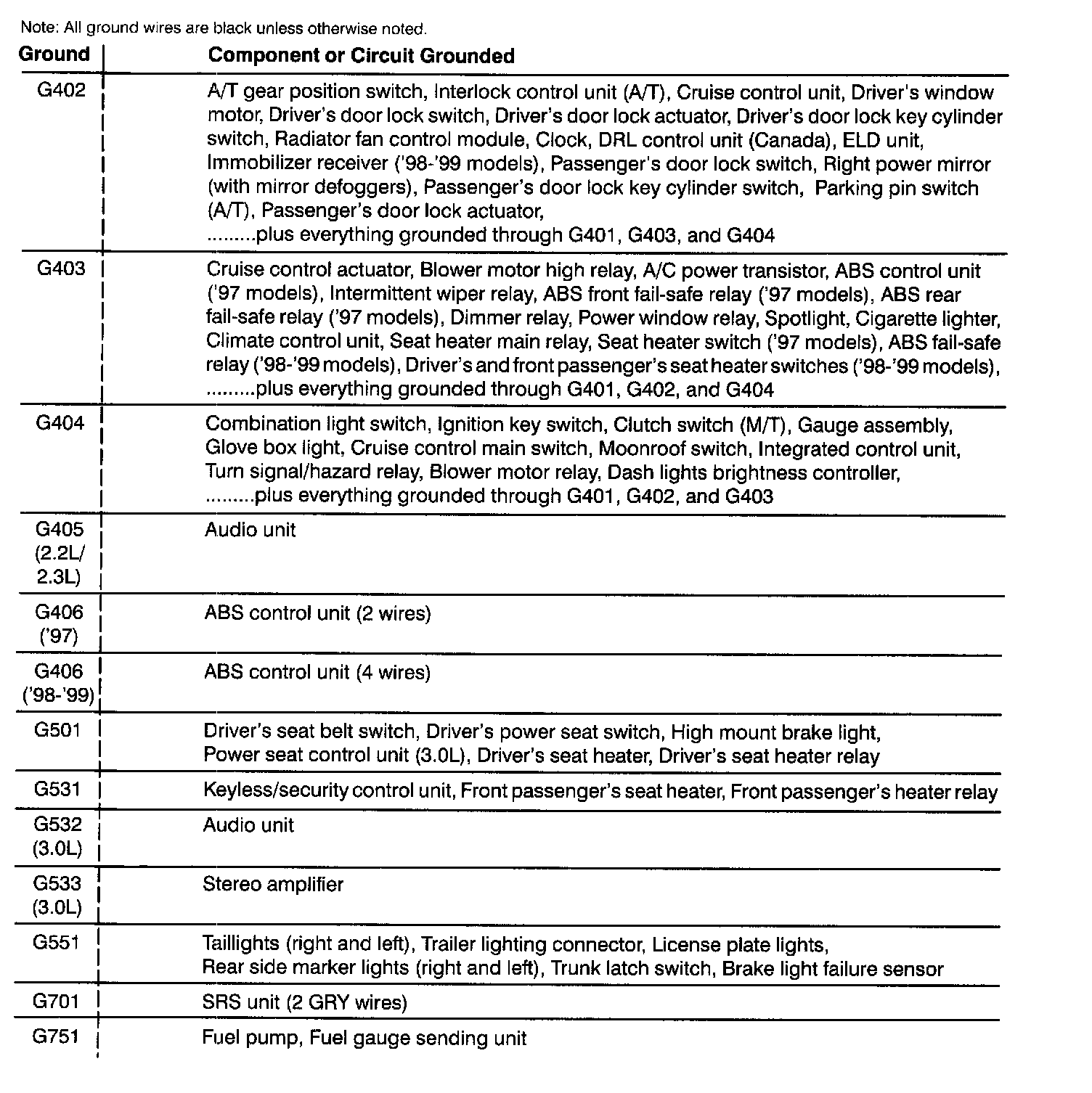

Ground-to-Components Index








GROUND-TO-COMPONENTS INDEX
