Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Security Lamp/Indicator

Security Lamp/Indicator

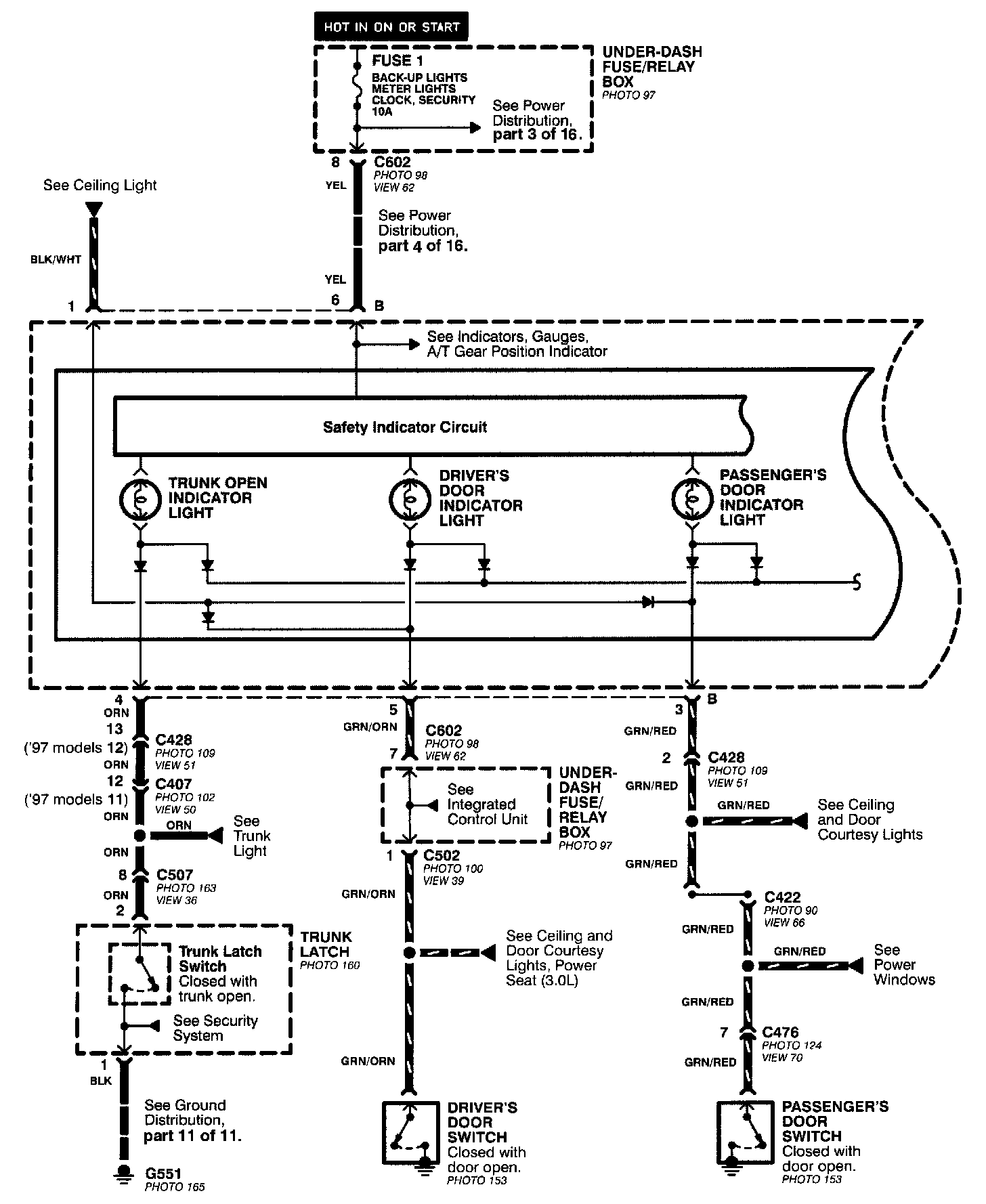

Safety Indicator (Part 1 Of 2):



Safety Indicator (Part 2 Of 2):
