Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector Numbers >> C501-C600 >> C537

C537

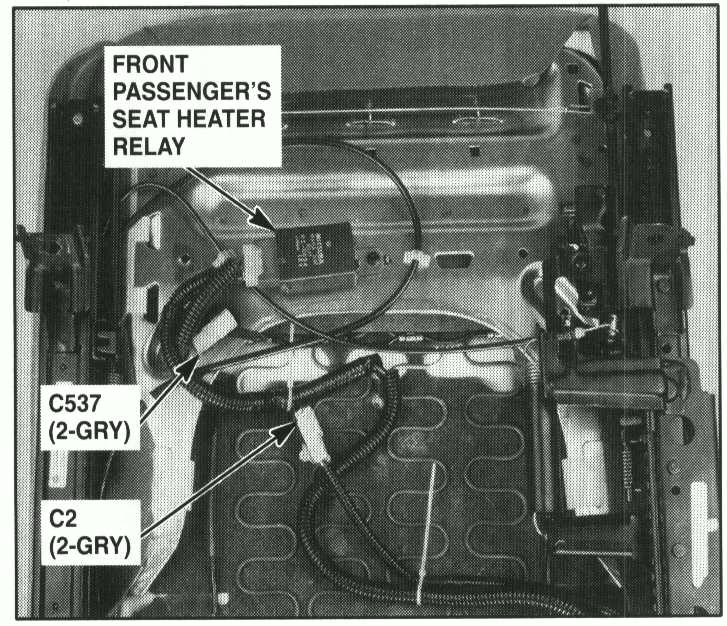

Below Front Passenger's Seat

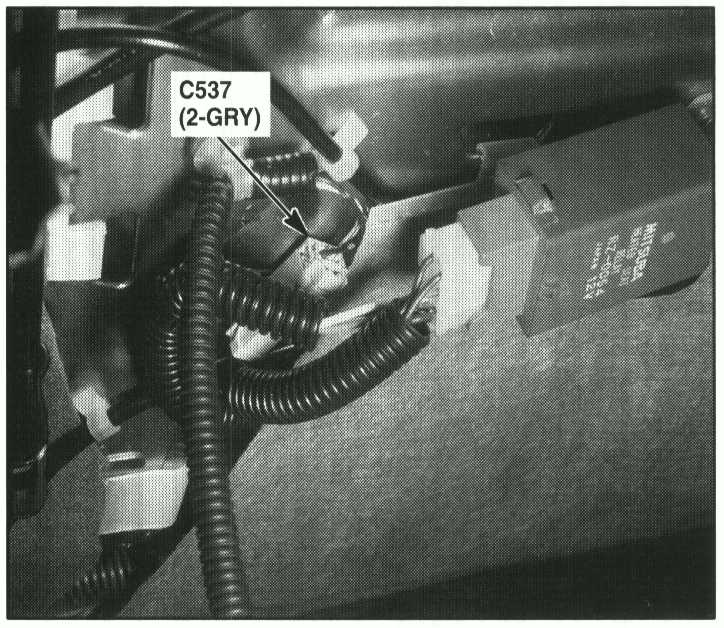

Underside of Front Passenger's Seat
