Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Powertrain or Engine Control Module

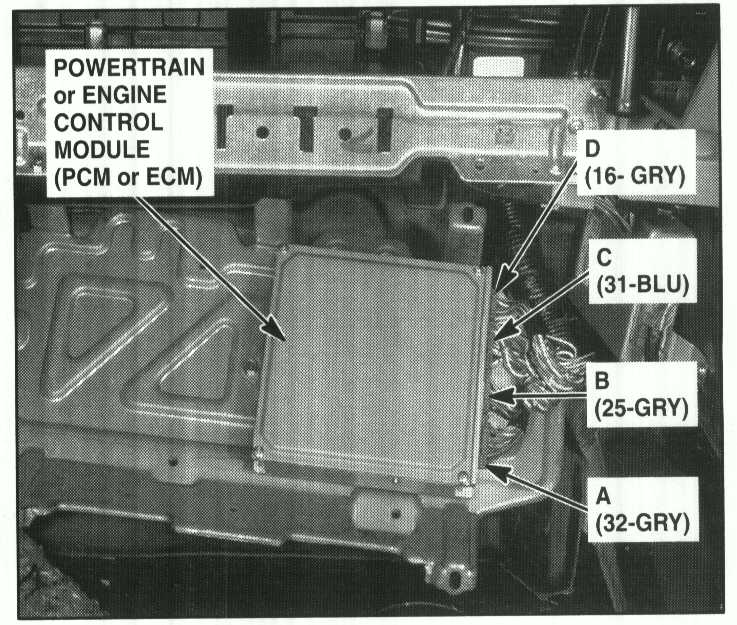

Powertrain or Engine Control Module




Underside of Front Pass. Footrest
