Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Components >> Fuses >> Under-Hood ABS Fuse/Relay Box Information

Under-Hood ABS Fuse/Relay Box Information

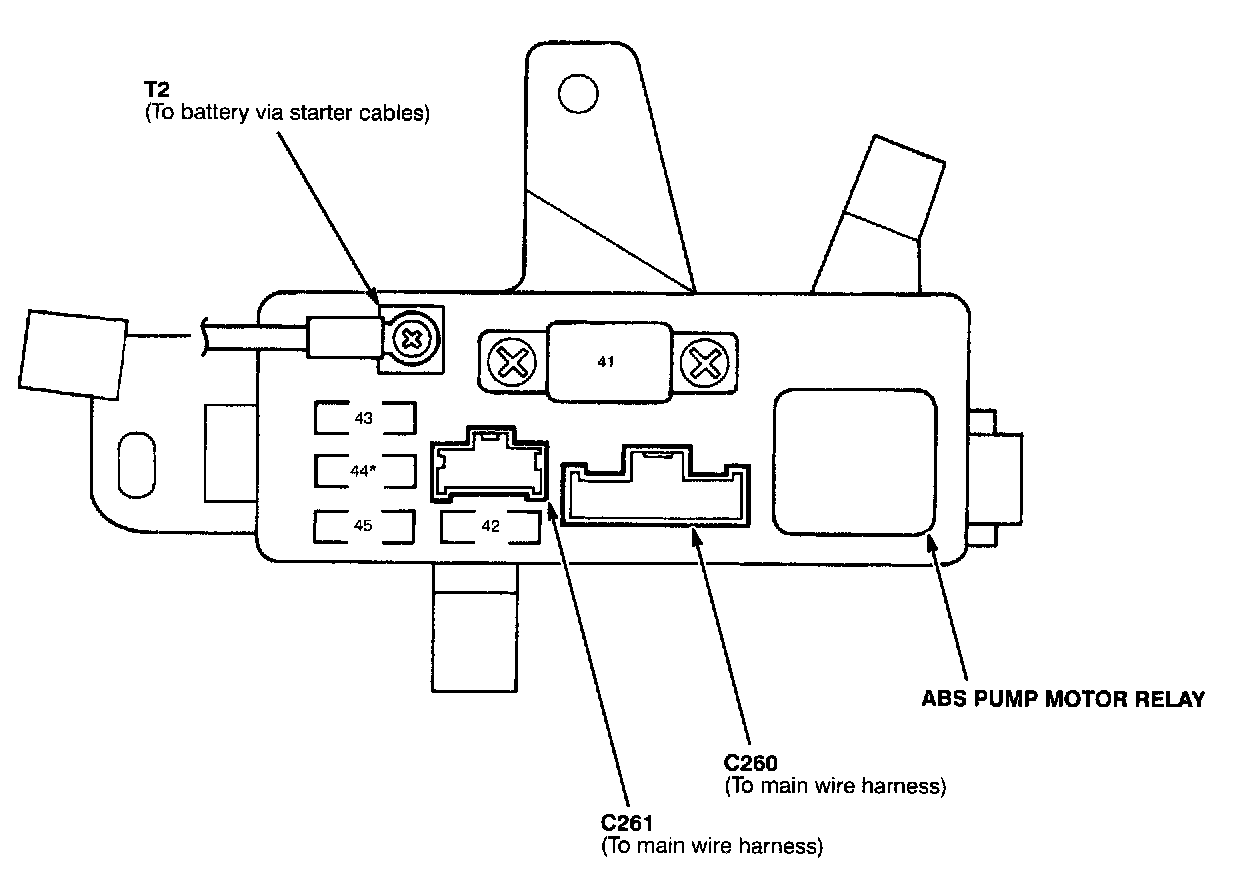

Under-hood ABS Fuse/relay Box Component View

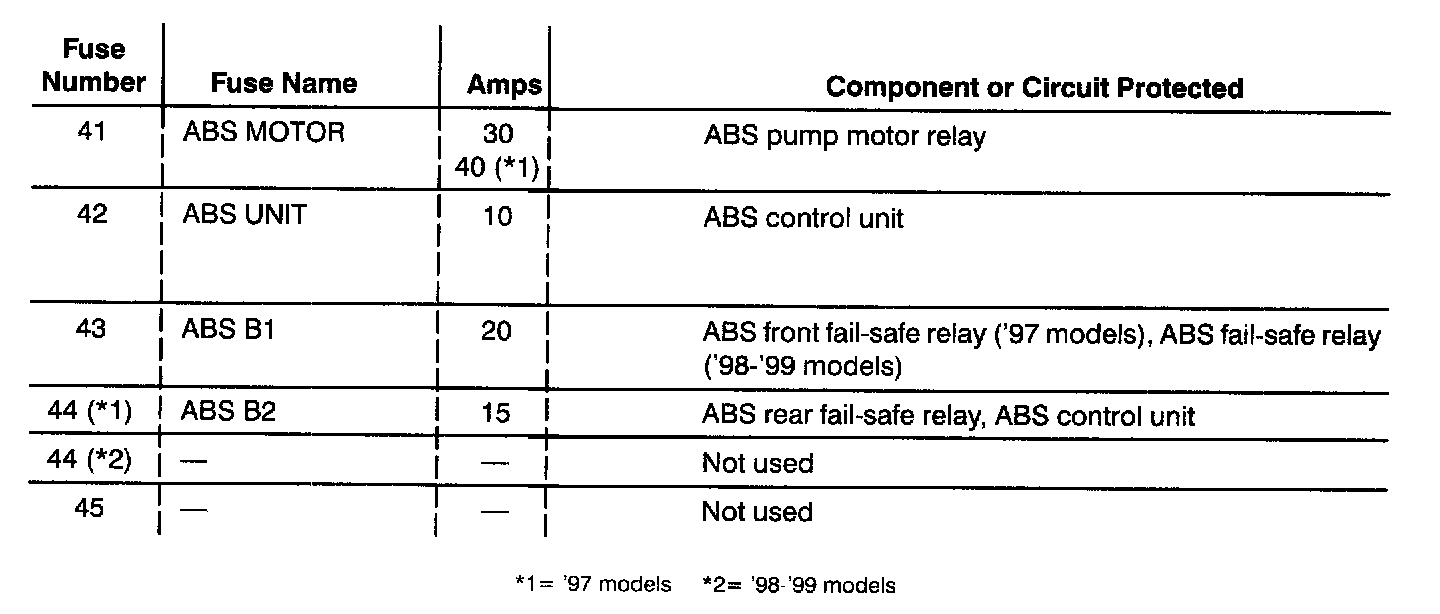

Fuse To Component Index
