Vacuum Brake Booster: Testing and Inspection

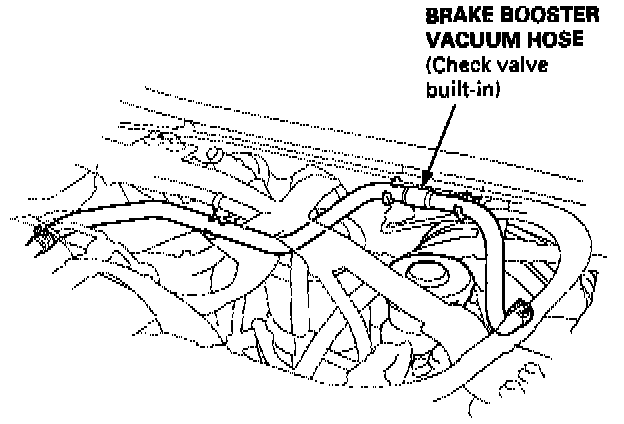

1. Disconnect the brake booster vacuum hose at the booster.
2. Start the engine and let it idle.
There should be vacuum at the hose.
- If no vacuum is available, the check valve is not working properly.
- Replace the brake booster vacuum hose and check valve, and retest.
