Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> 12 Pin Connector

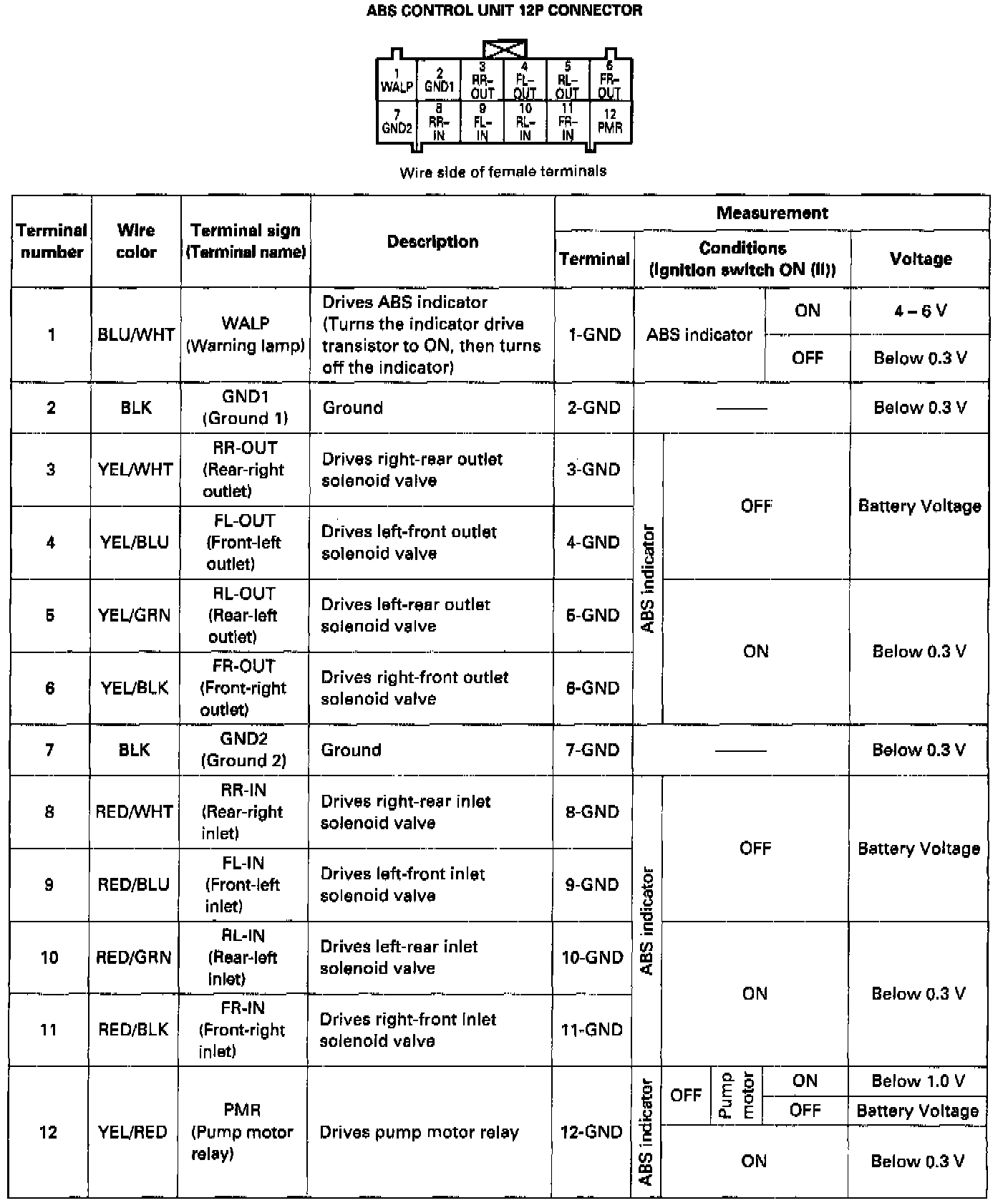

12 Pin Connector
