Fuse and Fusible Link Locations

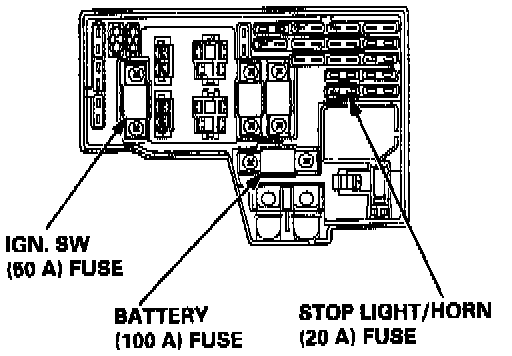

Underhood Fuse/Relay Box:

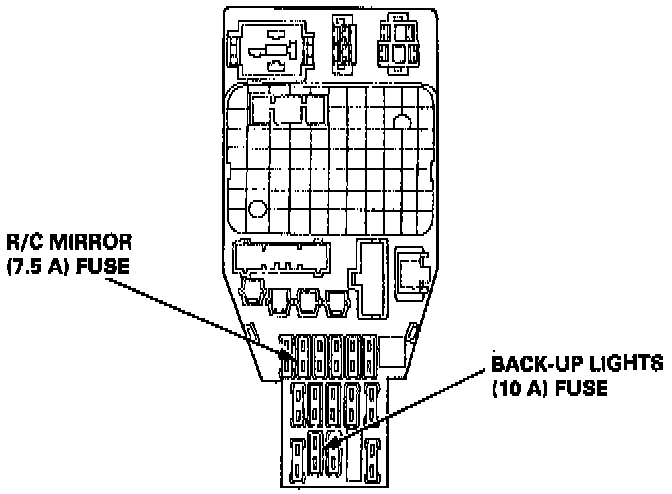

Under Dash Fuse/Relay Box:

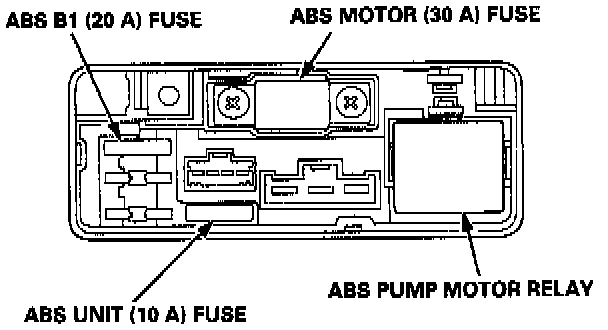

Underhood ABS Fuse/Relay Box:
