Seat Heater Main Relay

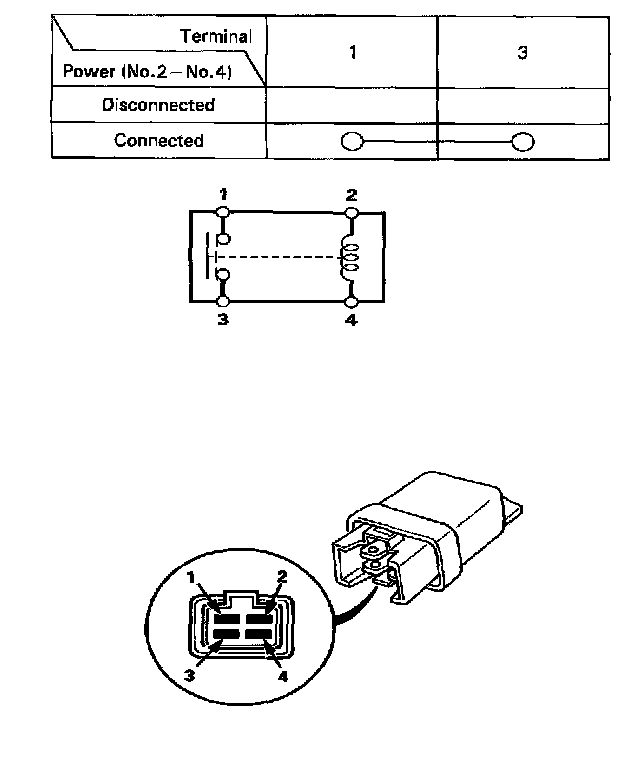

1. Remove the power relay from its socket.




2. Check for continuity between the terminals.
^ There should be continuity between the No.1 and No.3 terminals when power and ground are connected to the No.2 and No.4 terminals.
^ There should be no continuity between the No.1 and No.3 terminals when power is disconnected.
