Front Door Panel: Service and Repair

Door Panel Removal/lnstallation

NOTE: Take care not to scratch the door panel and other parts.


1. Remove:
^ Inner handle
^ Mirror mount cover panel

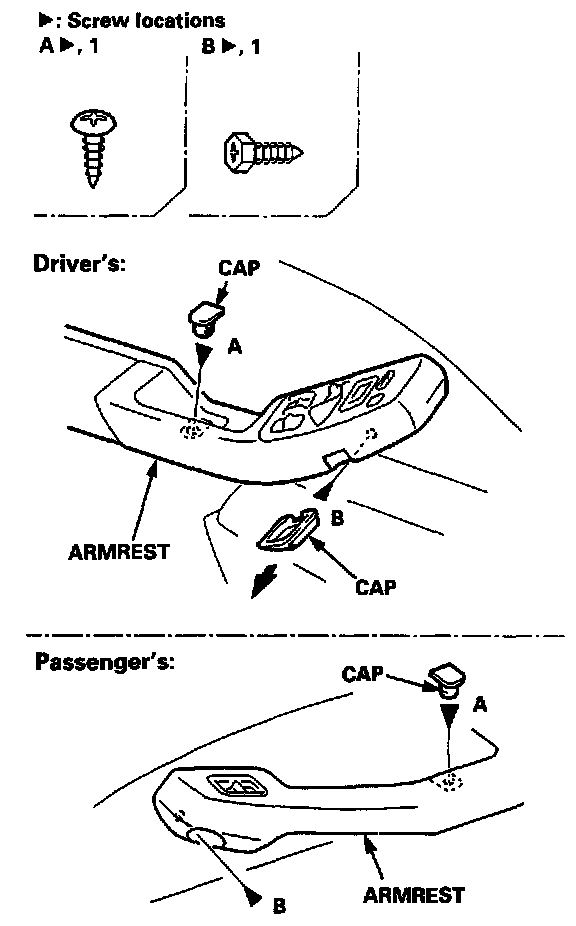

2. Remove the armrest screw.

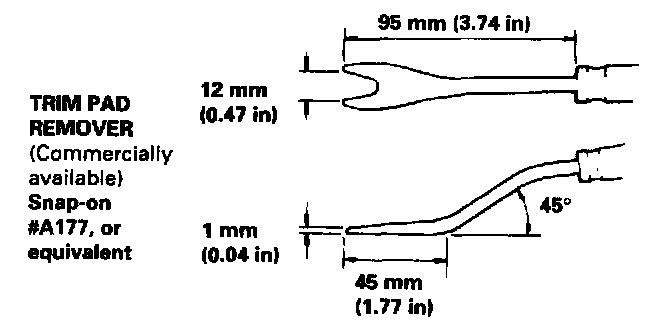

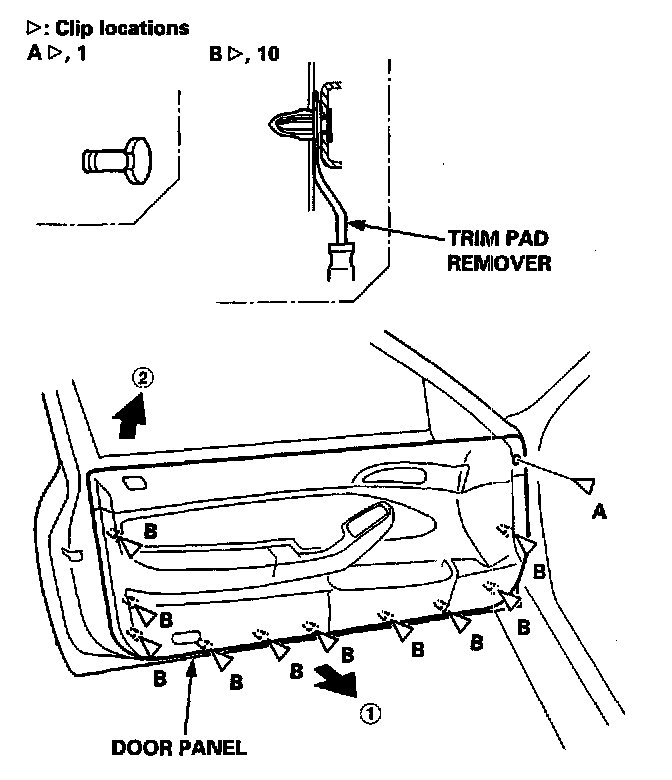

3. Release the clips that hold the door panel. Remove the door panel by pulling it upward.

NOTE: Remove the door panel with as little bending as possible to avoid creasing or breaking it.

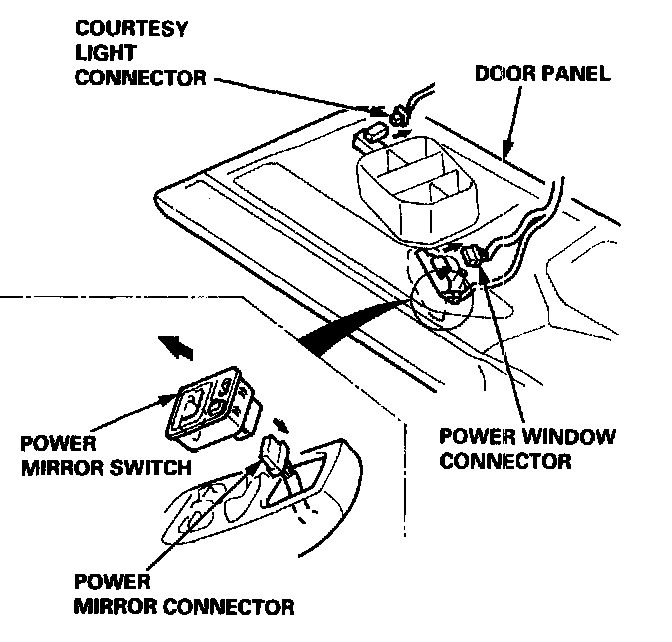

4. Disconnect the following:
^ Power window connectors
^ Power mirror connector (driver's)
^ Courtesy light connector

5. Installation is the reverse of the removal procedure.
