Speaker: Service and Repair

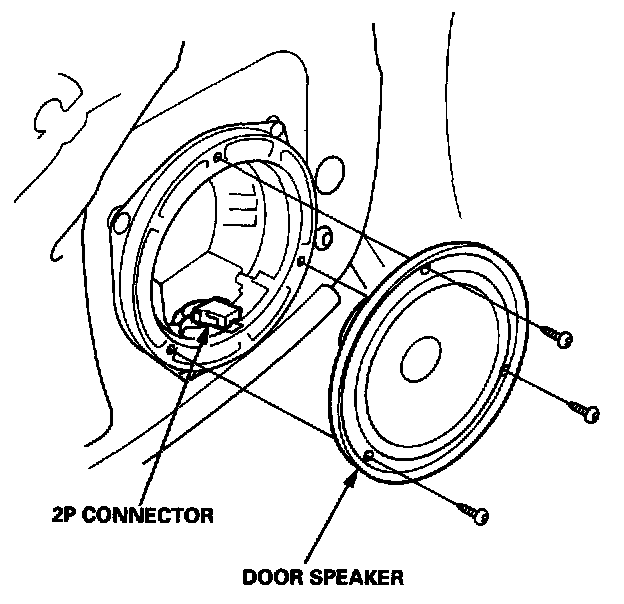

Door Speaker:
1. Remove the door panel.




2. Remove the three screws, then disconnect the 2P connector from the speaker.

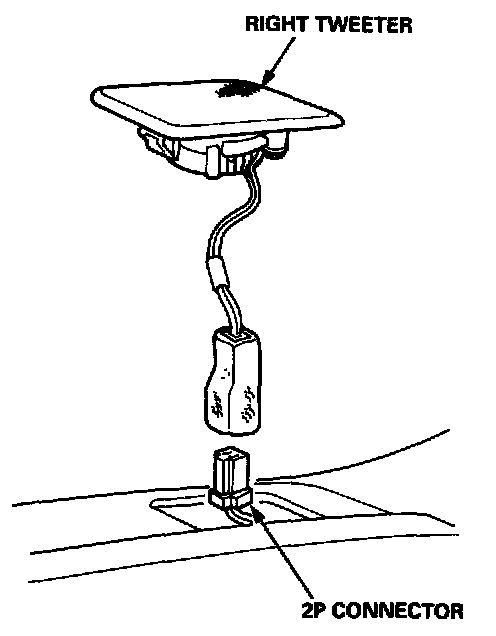

Tweeter:




1. Carefully pry the tweeter out of the dashboard, then disconnect the 2P connector from the tweeter.

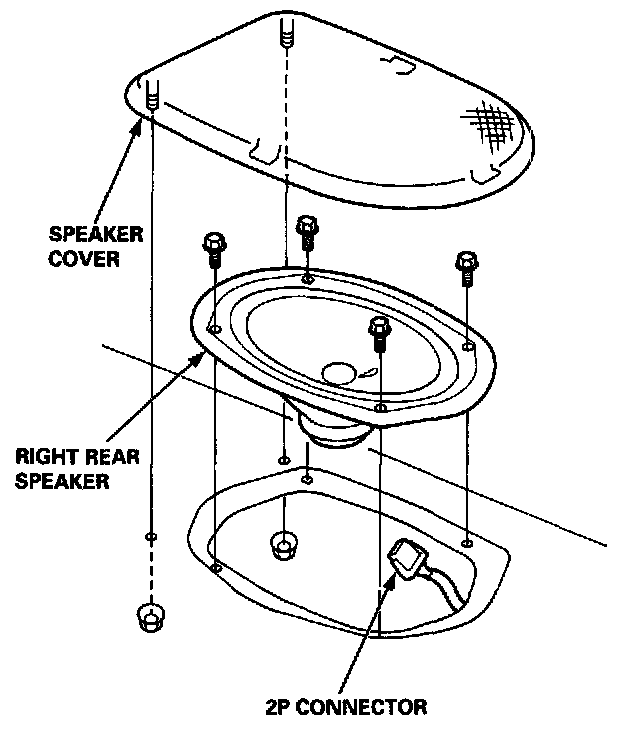

Rear Speaker:




1. Remove the two nuts from the trunk side, then remove the speaker cover.
2. Remove the four screws, disconnect the 2P connector from the speaker, and remove the speaker.
