Radio/Stereo: Service and Repair

NOTE: The original radio has a coded theft protection circuit. Be sure to get the customer's code number before

- disconnecting the battery.
- removing the stereo circuit fuse from the under-hood fuse/relay box
- removing the radio.

After service, reconnect power to the radio and turn it on. When the word "CODE" is displayed, enter the customer's 5-digit code to restore radio operation. This information is NOT contained in the Service Manual.



SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs or service.


1. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
2. Remove the front console and console panel

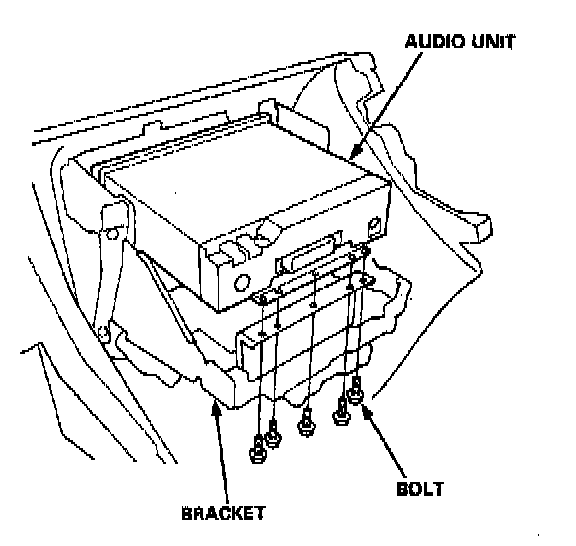

3. Remove the five mounting bolts, then remove the audio unit.
4. Install the reverse order of removal.



The following TSB is provided to help obtain the code in the event the customer cannot provide it.


April 15, 1998
BULLETIN NO. 98-004
YEAR - 1998 and LATER
MODEL ALL except SLX and NSX
VIN APPLICATION ALL

Audio Unit Anti-Theft Code Labels






BACKGROUND
This service bulletin describes where to attach the audio unit anti-theft code labels that come in the glove box of vehicles equipped with anti-theft audio systems.

If a vehicle is equipped with an anti-theft audio system, there are three peel-off labels in the glove box. Two of the labels have both the anti-theft code and the audio unit's serial number, and a third label contains only the serial number for the audio unit.

During TQI, stick the label with only the serial number on the outer-left surface of the glove box. If the radio code ever needs to be retrieved through the ACURALINK 2000 system, this will save you the time and labor of removing the audio unit to record the serial number.

NOTES:
- Also perform this procedure when installing an accessory audio unit that is equipped with an anti-theft system.
- If a remanufactured audio unit is installed in a vehicle, remove the old labels and install new ones on the glove box, Radio Identification Card, and the vehicle's service records.
- If the glove box is ever replaced, transfer the label from the old glove box to the new one.

WARRANTY CLAIM INFORMATION
None. This bulletin is for information only. Skill level: Maintenance Technician






PROCEDURE

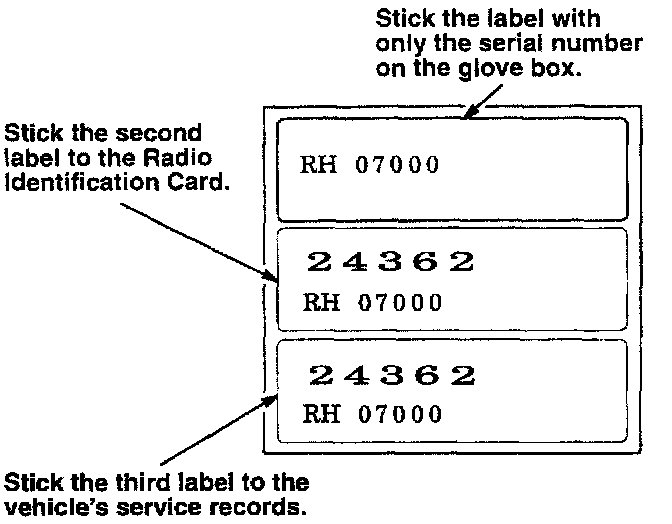

1. Stick the label containing only the serial number information on the outer-left surface of the glove box.
2. Stick the remaining two labels on the Anti-Theft Radio Identification Card and on the vehicle's service records.
