Amplifier: Service and Repair

1. Remove the jack cover, and pull back the trunk trim panel.

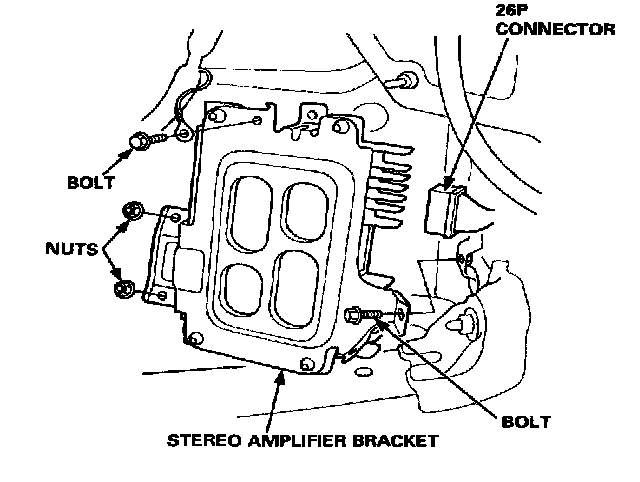

2. Remove the stereo amplifier bracket mounting bolts and nuts, then remove the stereo amplifier and bracket.




3. Disconnect the 26P connector.

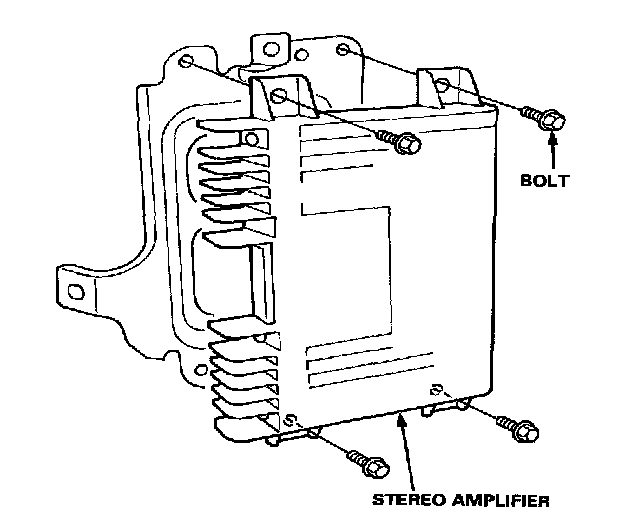

4. Remove the four mounting bolts, then remove the stereo amplifier from the bracket.
