P0113

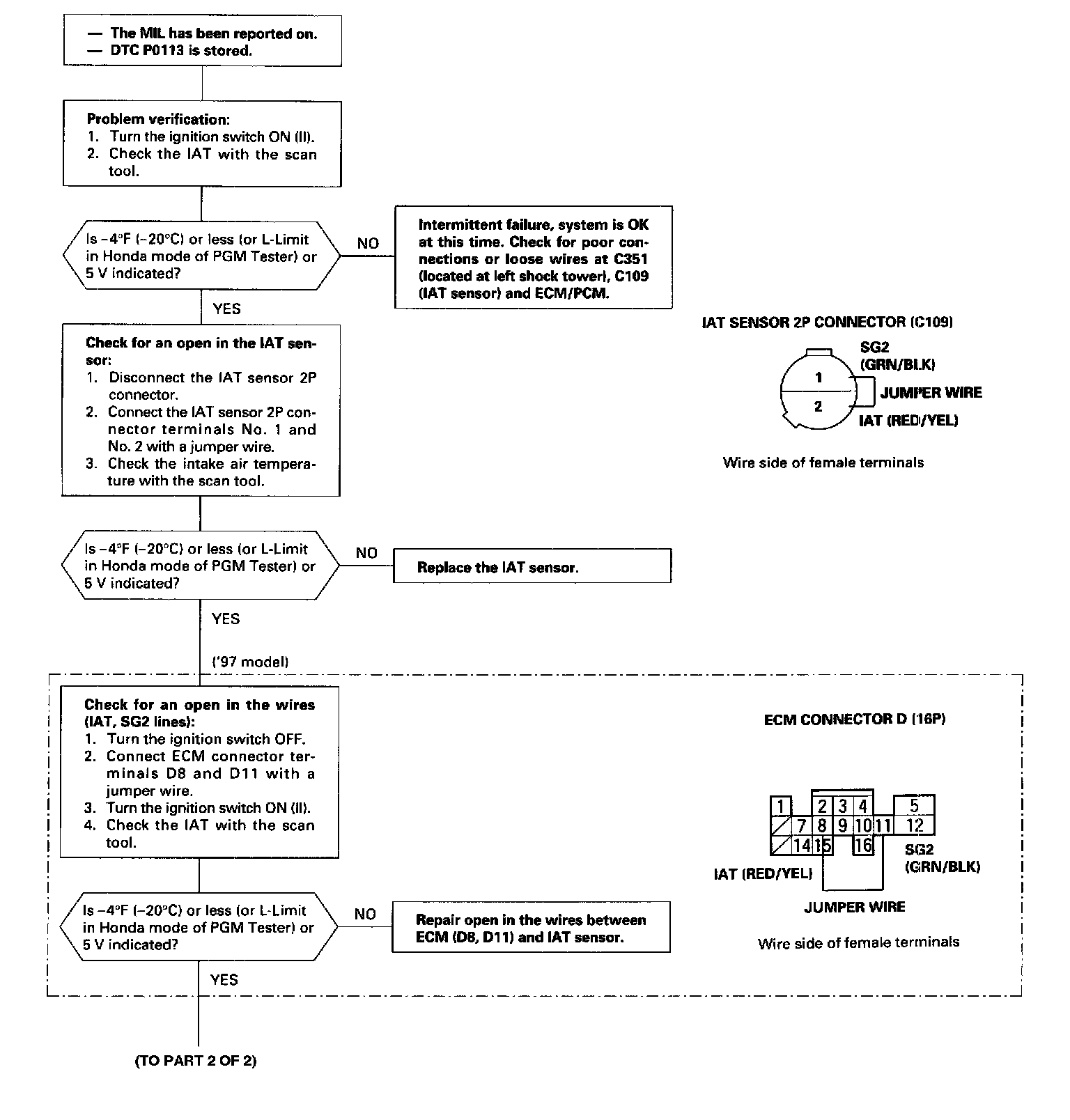

Part 1 Of 2:

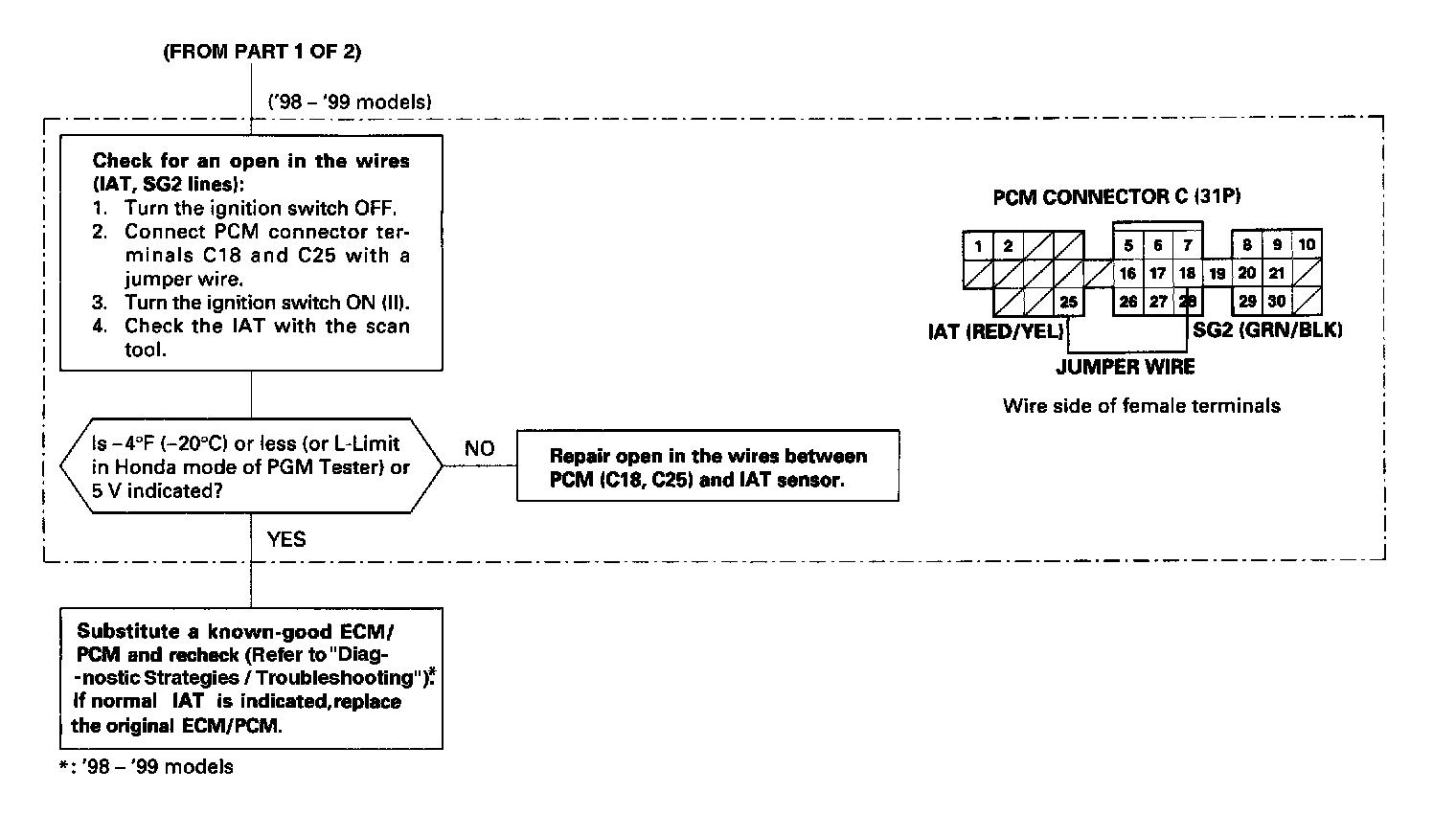

Part 2 Of 2:




The scan tool indicates Diagnostic Trouble Code (DTC) P0113: A high voltage (low temperature) problem in the Intake Air Temperature (IAT) sensor circuit.
