High Input

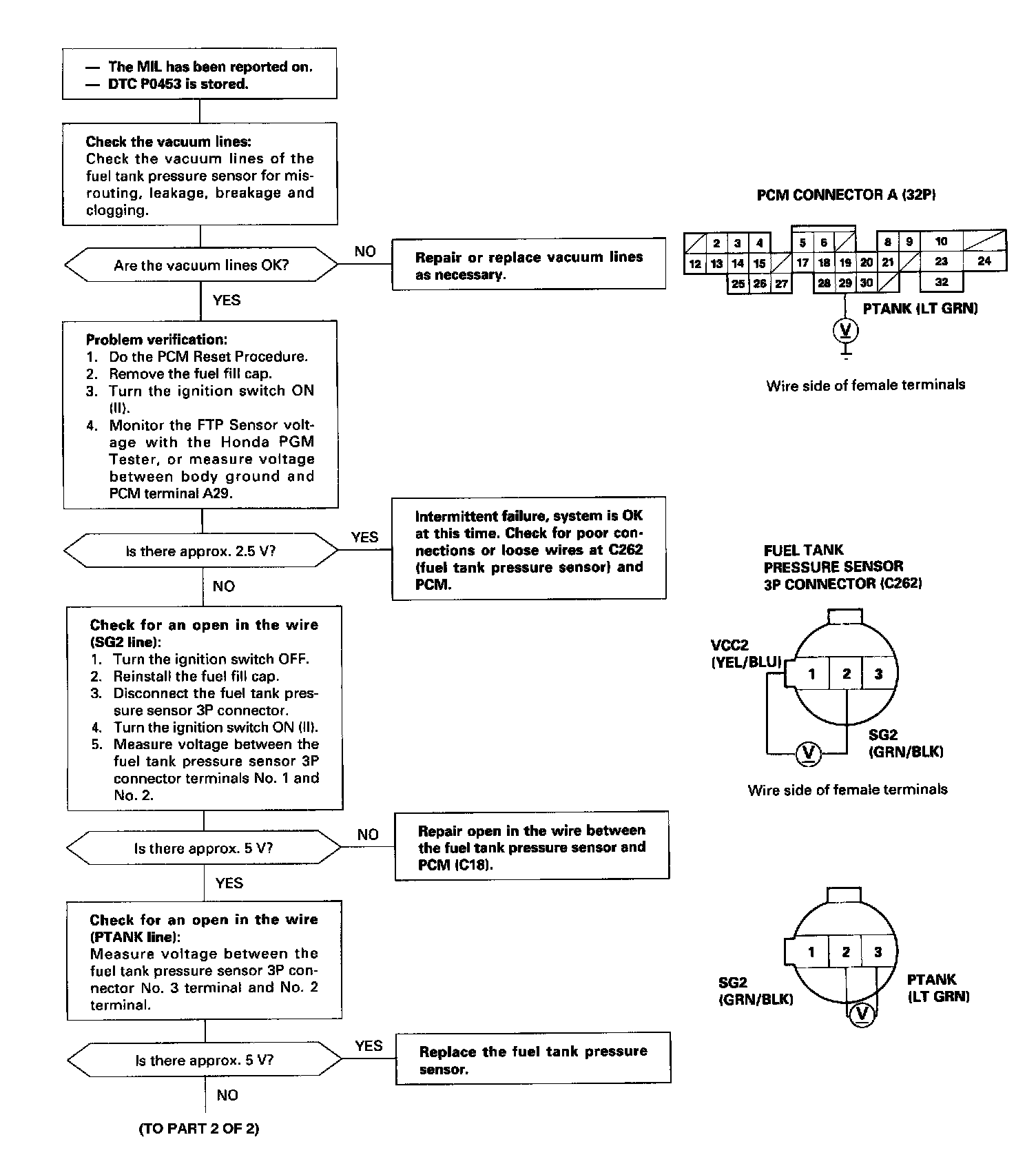

Part 1 Of 2:

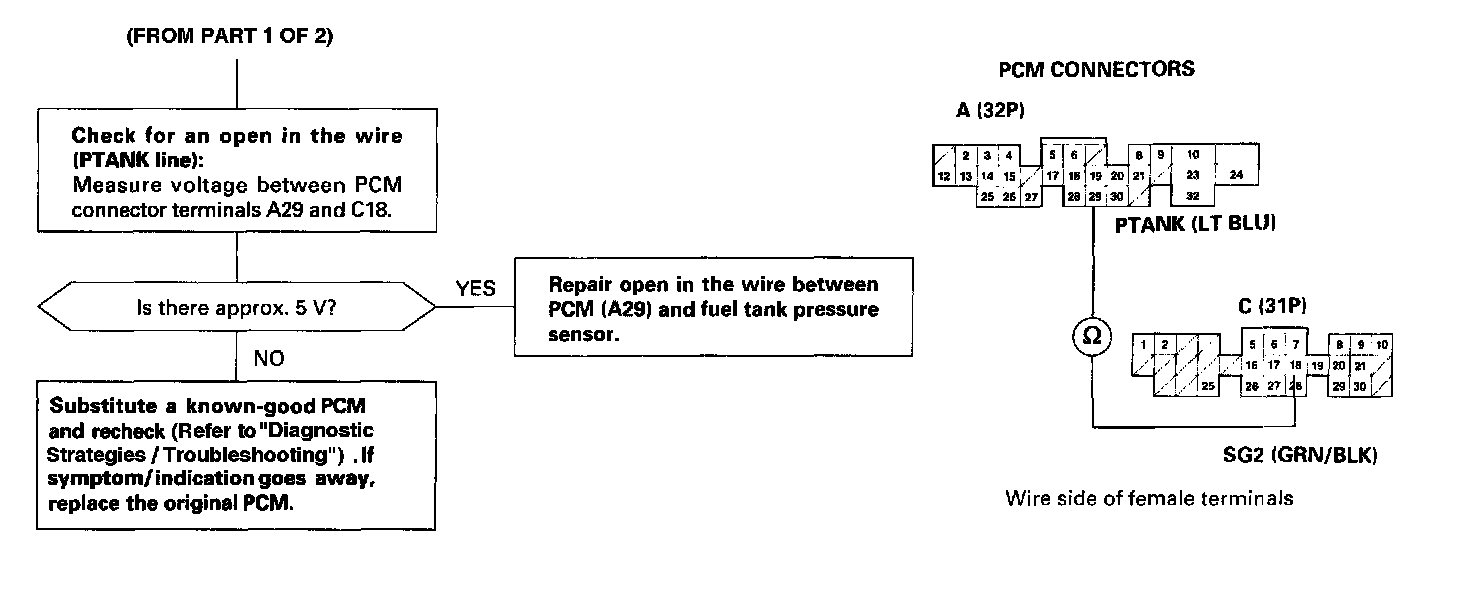

Part 2 Of 2:




The scan tool indicates Diagnostic Trouble Code (DTC) P0453: A high voltage problem in the Fuel Tank Pressure sensor.
