General Assembly

NOTE: Coat ail parts with ATF before assembly.

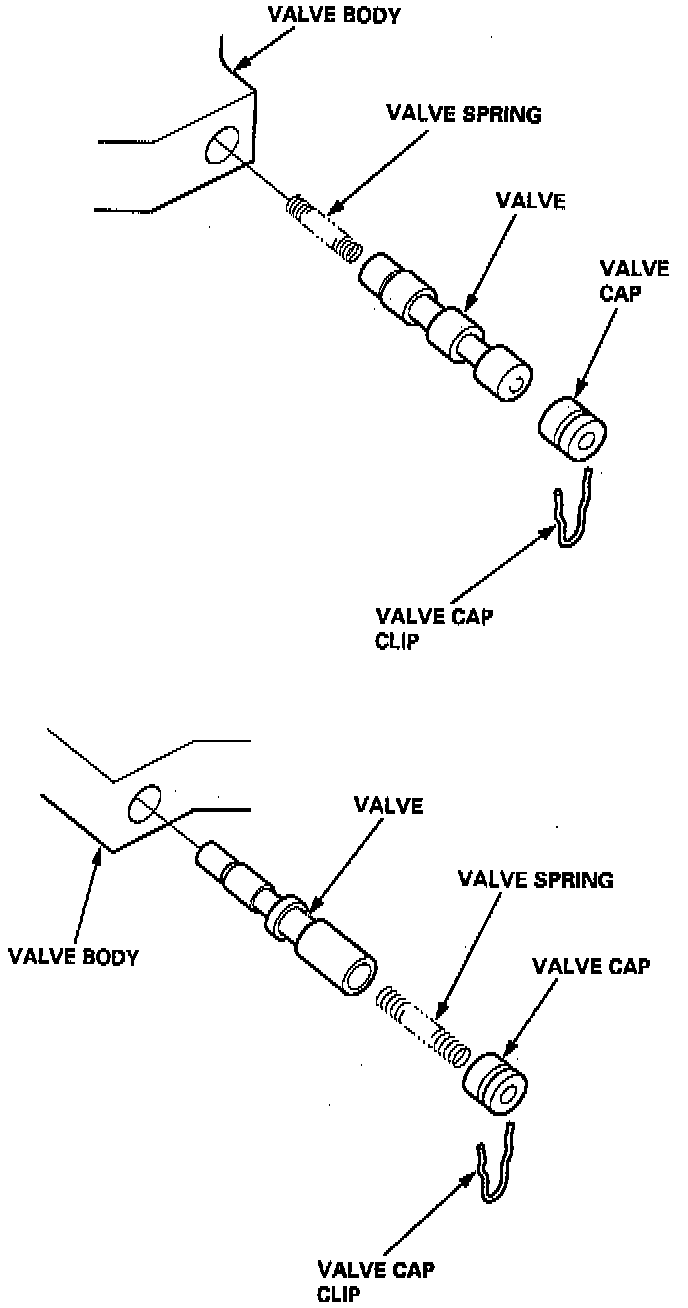

1. Install the valve, valve spring, and valve cap in the valve body, then secure with the valve cap clip.

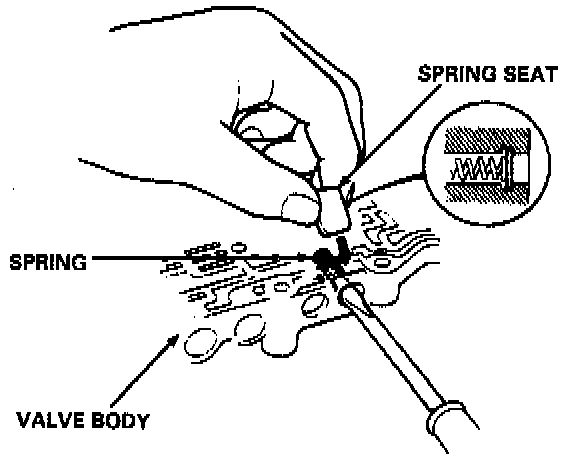

2. Set the spring in the valve, then install them in. the valve body. Push the spring in with a screwdriver, then install the spring seat.
