Mainshaft: Testing and Inspection

NOTE: Lubricate an parts with ATF during assembly.

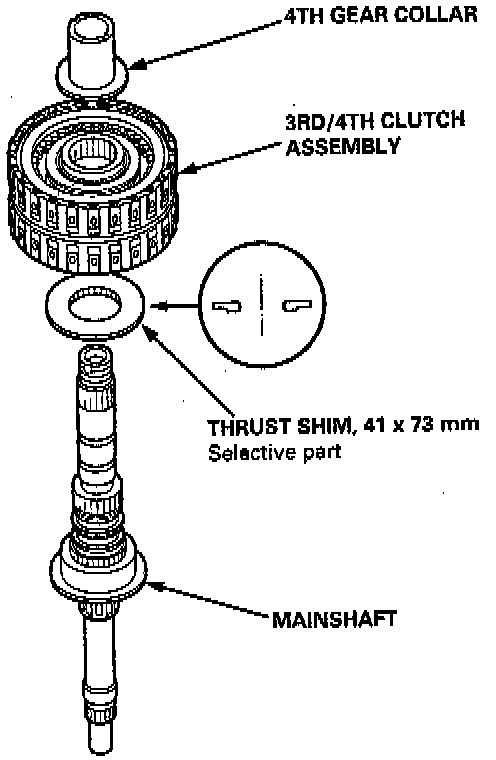

1. Assemble the parts below on the mainshaft.

NOTE: Do not assemble the O-rings during inspection.

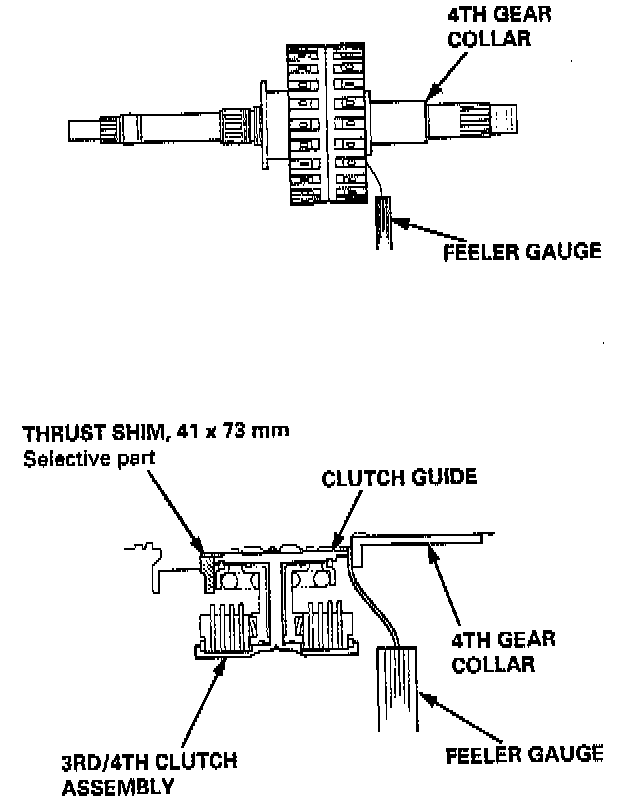

2. Hold the 4th gear collar against the clutch assembly, then measure the clearance between the clutch guide and the 4th gear collar with a feeler gauge as shown.
* STANDARD: 0.03 - 0.11 mm (0.001 - 0.004 inch).

NOTE: Take measurement in at least three places, and use the average as the actual clearance.

3. If the clearance is out of standard, remove the thrust shim and measure the thickness.





4. Select and install a new shim, then recheck.
5. After replacing the thrust shim, make sure the clearance is within standard.
