Sealing Rings Replacement

NOTE: The sealing rings on the mainshaft are synthetic resin with chamfered ends. Check condition of the sealing rings, and replace them only if they are worn, distorted, or damaged. Lubricate an parts with ATF during assembly.

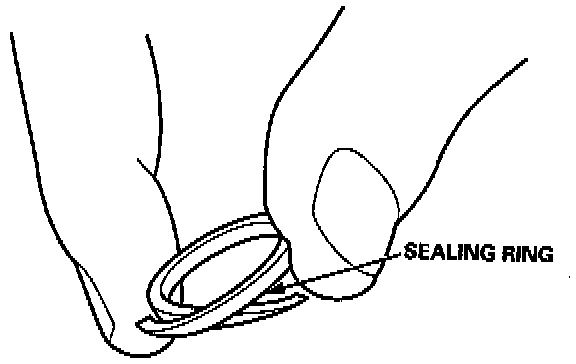

1. For better fit, squeeze the sealing ring together slightly before installing them.
2. Install new sealing rings on the mainshaft.





3. After installing the sealing rings, verify the following:
- The sealing rings are fully seated in the groove.
- The sealing rings are not twisted.
- The chamfered ends of the sealing ring are properly joined:
