Differential Carrier Assembly: Service and Repair

REPLACEMENT

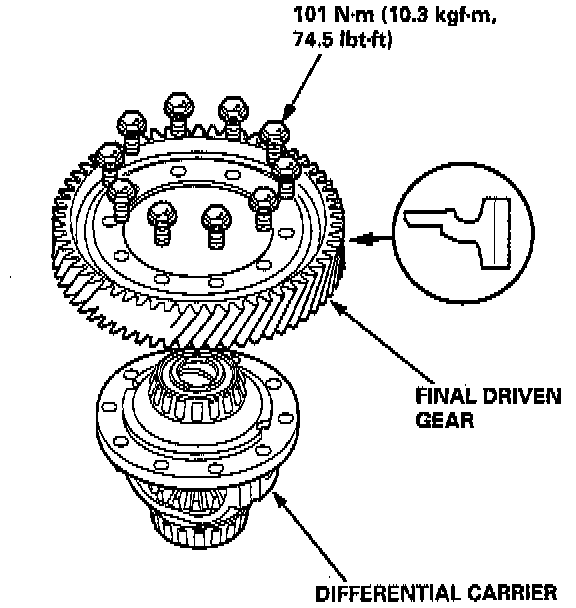

1. Remove the final gear from the differential carrier.

NOTE: The final driven gear bolts have left-hand threads.

2. Install the final driven gear with the chamfered side on the inner bore facing the differential carrier.
3. Tighten the bolts to the specified torque in a crisscross pattern.
* TORQUE: 101 Nm (74.5 ft.lb).
