Bearing Replacement

TOOLS REQUIRED
* 07746-0010300 Attachment, 42 x 47 mm
* 07749-0010000 Driver
* 07746-0010500 Bearing Attachment, 62 x 68 mm
* Or Equivalent

NOTE: Check the bearing for wear, damage and rough movement. If the bearing is worn or damaged, replace the bearing.

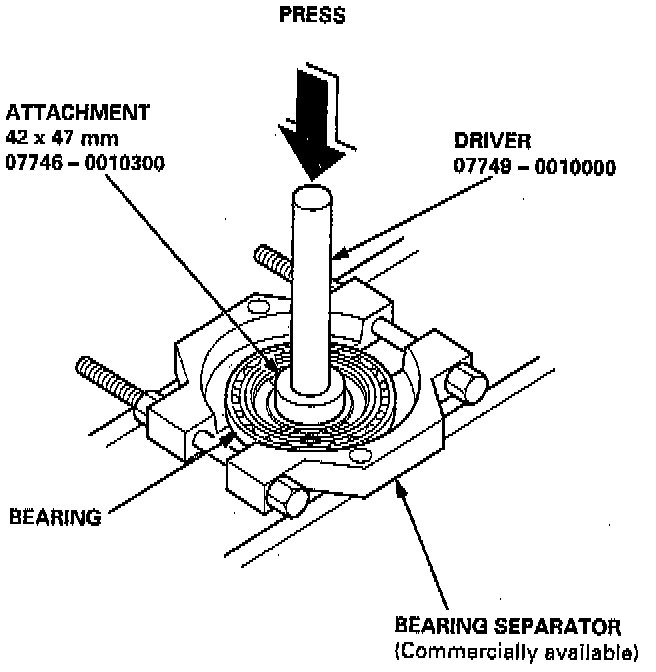

1. Remove the bearing from the bearing hub using a bearing separator and a press as shown.

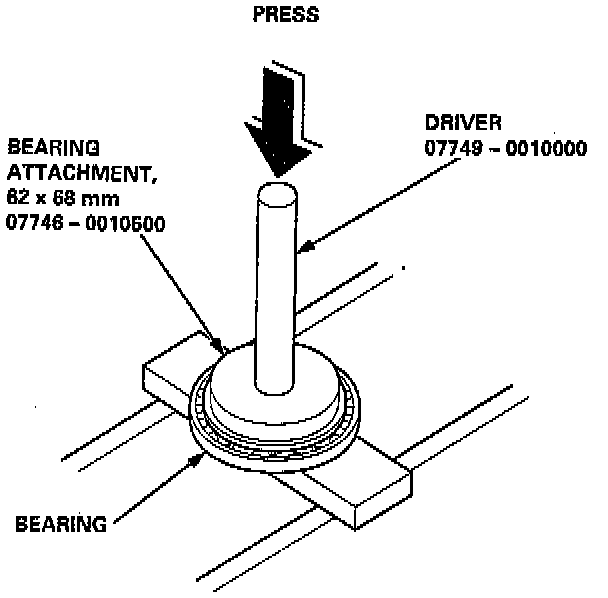

2. Install the new bearing on the bearing hub using the special tool and a press as shown.
