Oil Seal Replacement

TOOLS REQUIRED

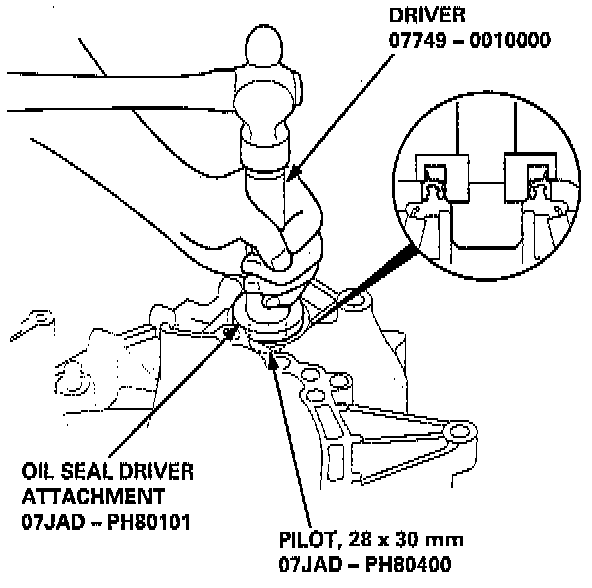

* 07GAD-PG40101 Seal Driver Attachment
* 07749-0010000 Driver
* 07JAD-PH80400 Pilot, 28 x 30 mm
* 07JAD-PH80101 Oil Seal Driver Attachment
* Or Equivalent

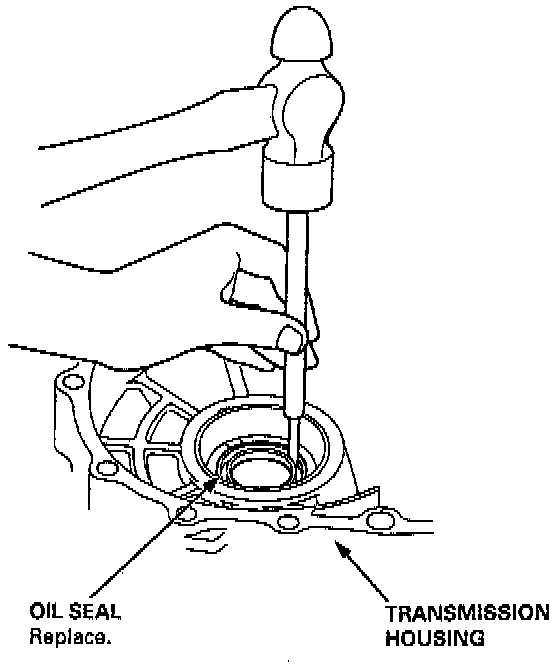

1. Remove the oil seal from the transmission housing.

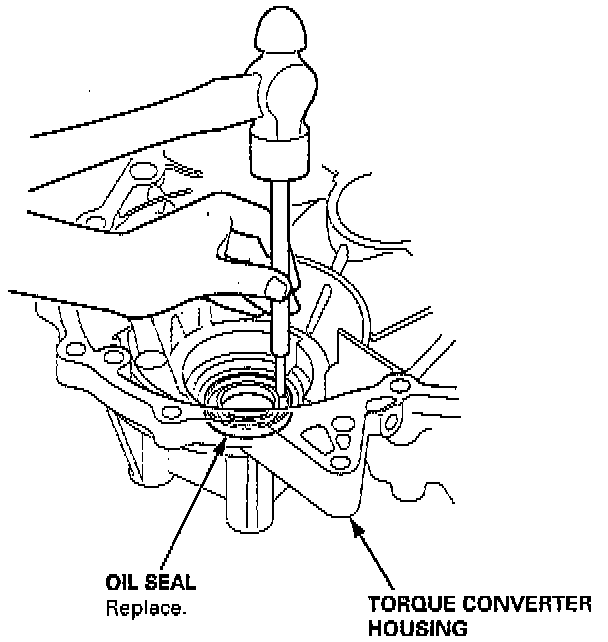

2. Remove the oil seal from the torque converter housing.





3. Install the oil seal in the transmission housing with the special tools.





4. Install the oil seal in the torque converter housing with the special tools.
