Mainshaft Bearing/Oil Seal

OIL SEAL REPLACEMENT

Tools Required
* 07GAD-PG40101 Seal Driver Attachment
* 07749-0010000 Driver
* 07JAD-PH80400 Pilot, 28 x 30 mm
* 07JAD-PH80101 Oil Seal Driver Attachment
* Or Equivalent





1. Remove the oil seal from the transmission housing.





2. Remove the oil seal from the torque converter housing.





3. Install the oil seal in the transmission housing with the special tools.





4. Install the oil seal in the torque converter housing with the special tools.


MAINSHAFT BEARING REPLACEMENT

Tools Required
* 07736-A01000B Adjustable Bearing Puller, 20-40 mm
* 07749-0010000 Driver
* 07746-0010500 Attachment, 62 x 68 mm
* 07746-0010600 Attachment, 72 x 75 mm
* Or Equivalent

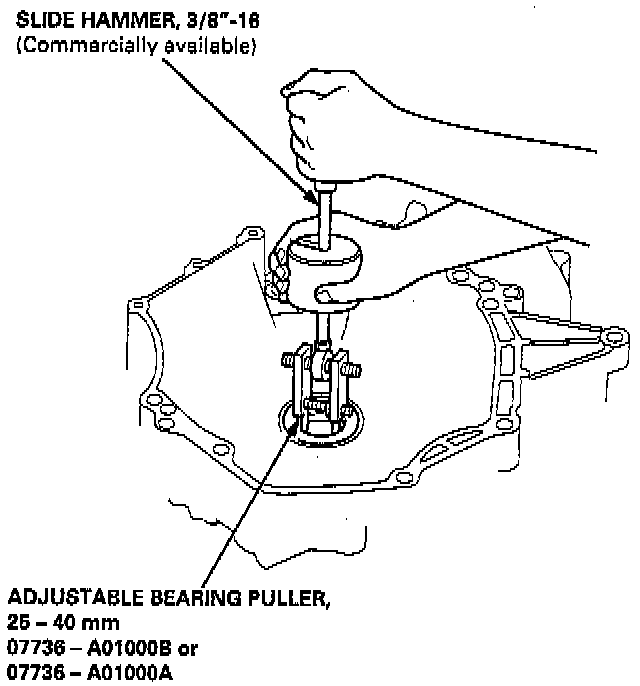

1. Remove the mainshaft bearing and oil seal with the special tool.

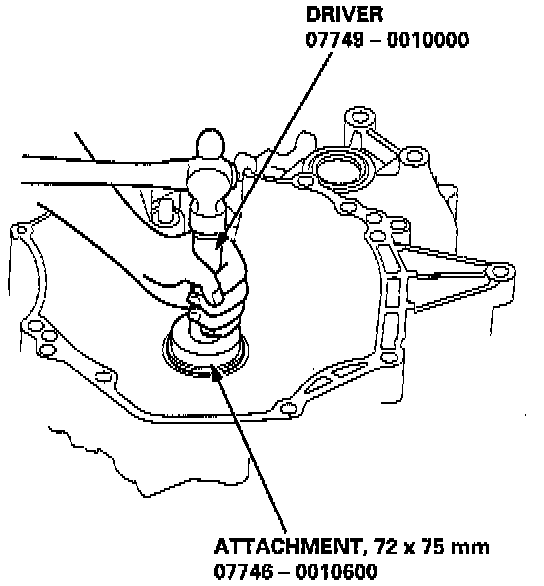

2. Install the new mainshaft bearing until it bottoms in the housing with the special tools.

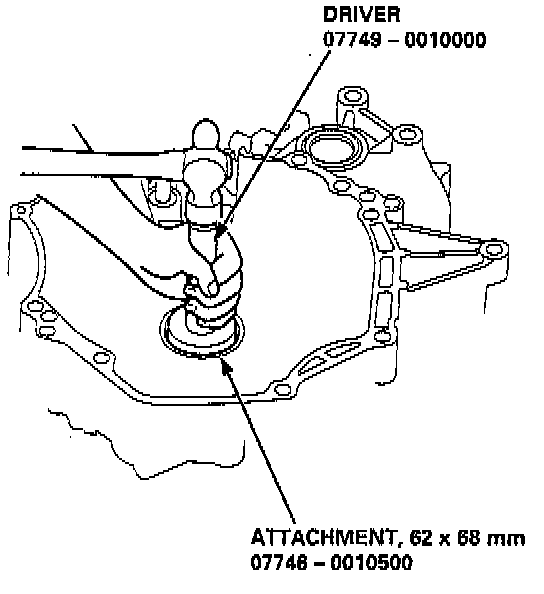

3. Install the new oil seal flush with the housing with the special tools.
