Countershaft Bearing

TOOLS REQUIRED
* 07736-A01000B Adjustable Bearing Puller
* 07749-0010000 Driver
* 07746-0010500 Attachment, 62 x 68 mm
* Or Equivalent

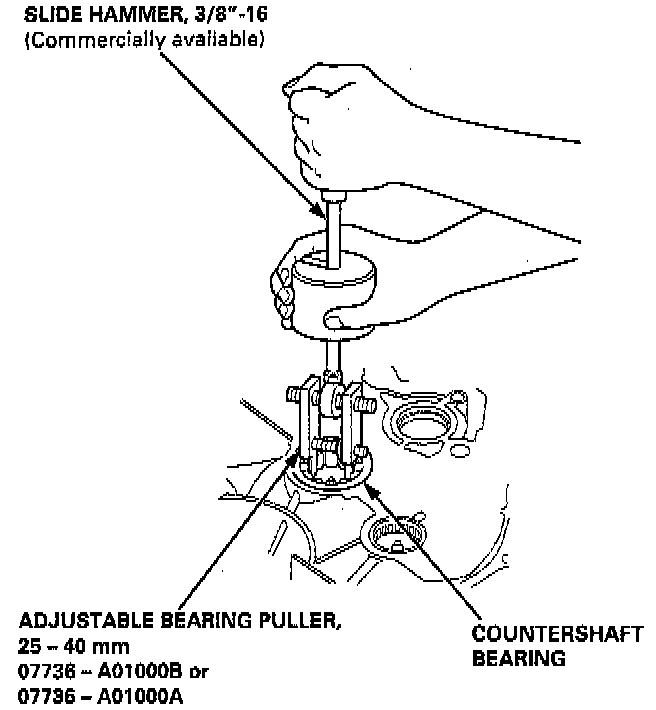

1. Remove the countershaft bearing with the special tool.
2. Install the ATF guide plate.

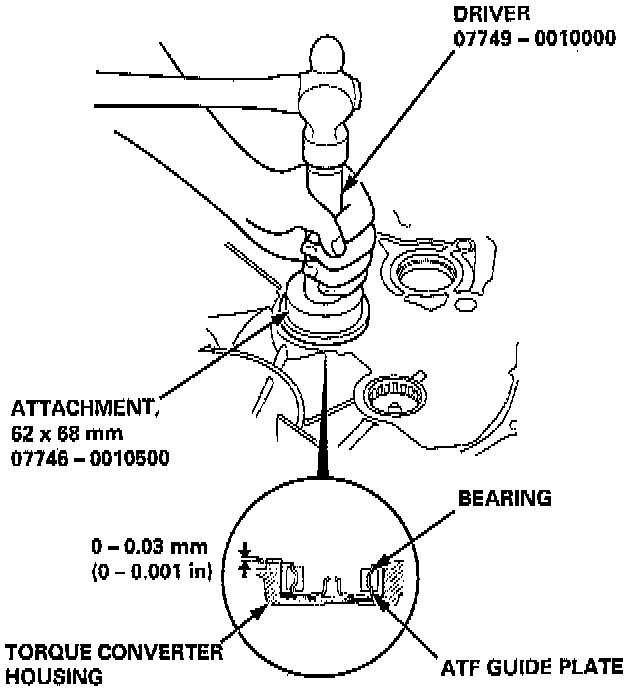

3. Install the new bearing into the housing with the special tools.
