Shift Control Solenoid Valve B/C

NOTE: If the shift control solenoid valve B and C are replaced or removed at the same time, be sure to re-install them correctly.
- The connector color of shift control solenoid valve B is black.
- The connector color of shift control solenoid valve C is brown.

1. Remove the starter

NOTE: If you are only replacing shift control solenoid valve C, starter removal is not needed.

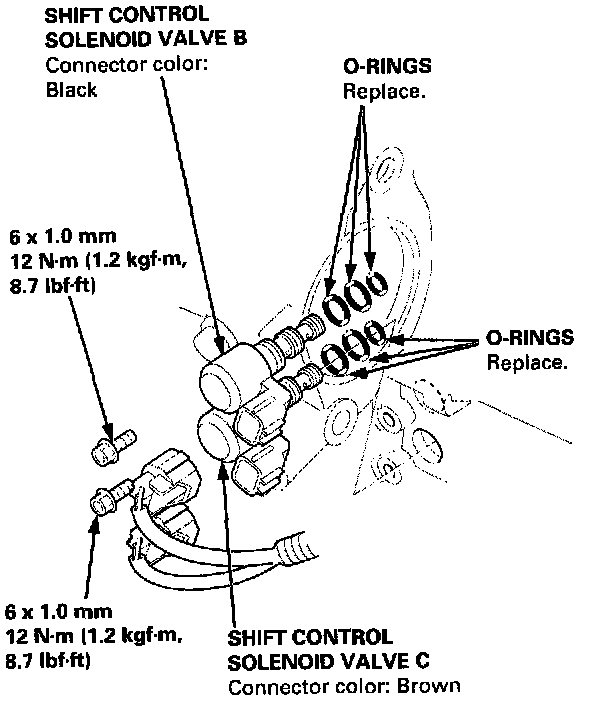

2. Remove the mounting bolt and the shift control solenoid valve B.




3. Remove the mounting bolt and the shift control solenoid valve C.
4. Install a new shift control solenoid valve B or C with new O-rings. While installing shift control solenoid valve B or C, do not allow dust or other foreign particles to enter the transmission.
5. Check the connector for rust, dirt or oil, then reconnect the connector securely.
6. Install the starter.
