Child Seat Tether Attachment: Service and Repair

Child Seat Anchor Plate Installation

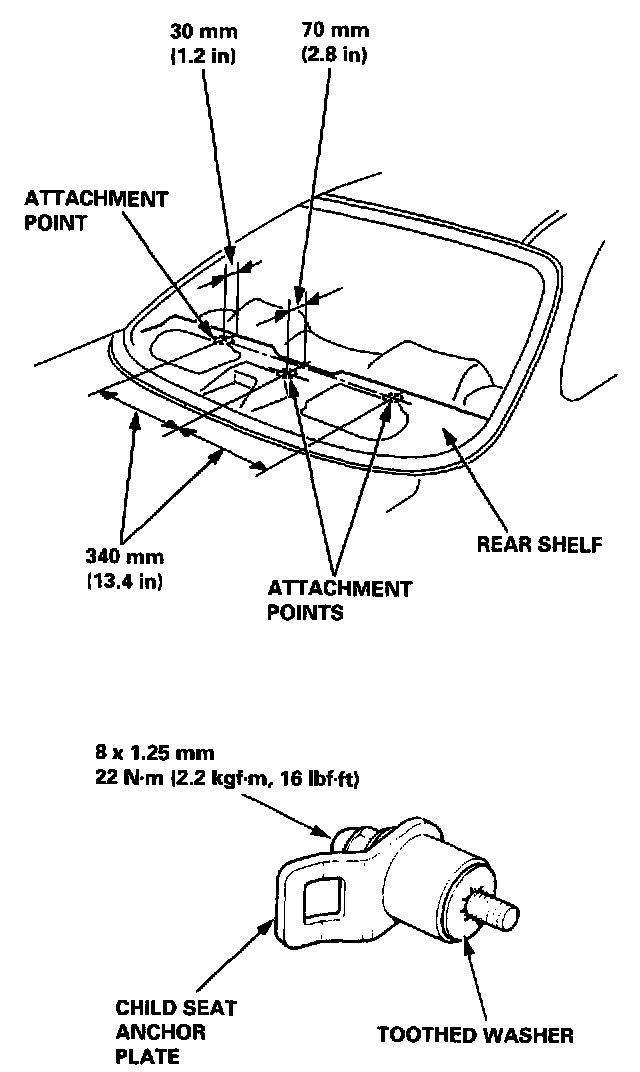

Attachment points are provided for a rear seat mounted child restraint system which uses a top tether. The attachment points are located on the rear shelf, just behind the rear seat-back. When using a child seat with a top tether, install the child seat anchor plates securely.

NOTE: The rear shelf is perforated at each attachment point. Use a razor blade or sharp knife to carefully cut a 1 inch diameter circle at the attachment point, then cut the rear shelf along the perforations to make a hole.

NOTE:
- Do not remove the toothed washer from the child seat anchor plate. Use the child seat anchor plate with the toothed washer attached to it.
- When installing a child seat on the rear seat, follow the instructions of the manufacturer of the child seat.
- Additional anchor plates are available.

WARNING: Do not use the child seat anchor plate for any other purpose; it is designed exclusively for installation of a child seat.
