Center Mounted Brake Lamp: Service and Repair

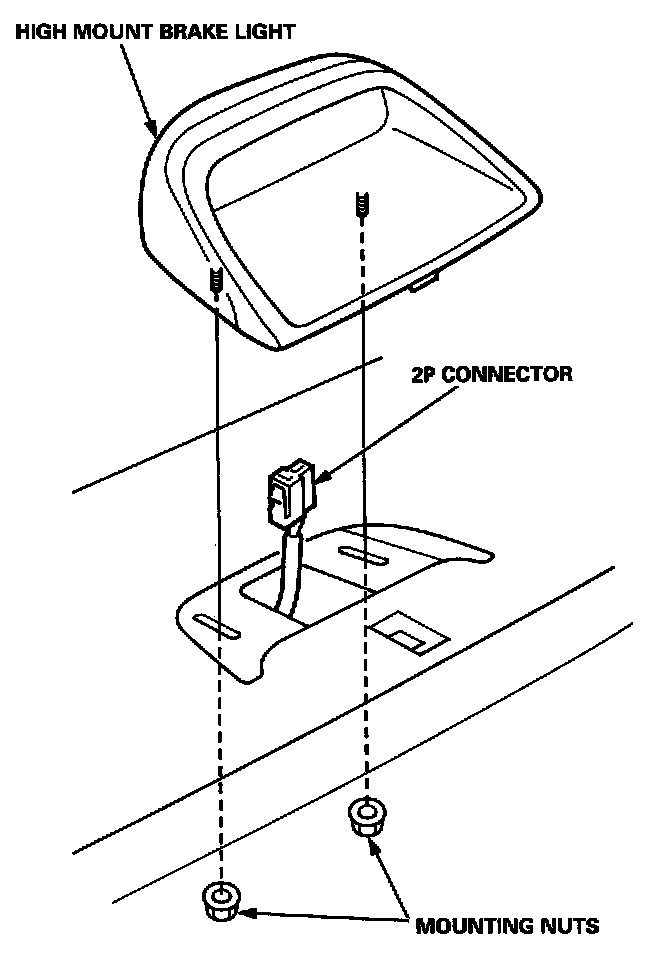

1. Open the trunk lid, and disconnect the 2P connector from the high mount brake light.




2. Remove the two nuts, then remove the high mount brake light from the rear shelf.
3. Install the high mount brake light in the reverse order of removal.

NOTE: Clean the rear window glass before installing the light.
