Sunroof / Moonroof Motor: Testing and Inspection

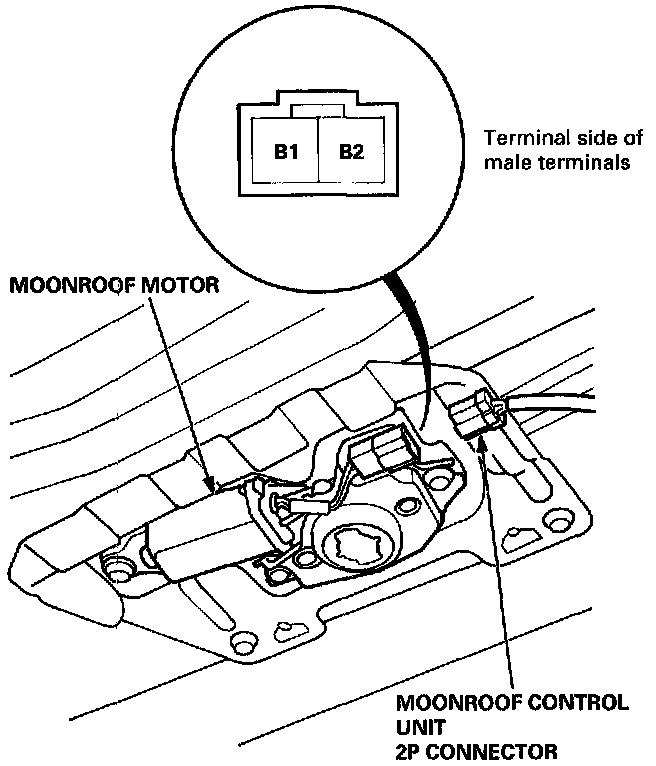

1. Remove the headliner.

2. Disconnect the 2-P connector from the moon roof motor.

3. Check the motor by connecting power and ground according to the table.
If the motor does not run, replace it.
