Door Lock Switch Test
Door Lock Switch Test:

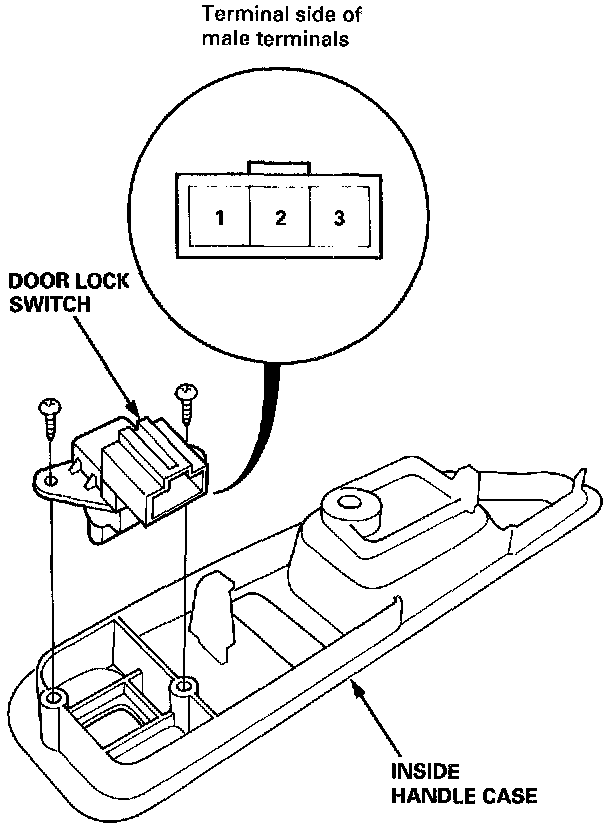

1. Remove the inside handle.
2. Disconnect the 3-P connector from the switch.
Door Lock Switch Test:
3. Check for continuity between the terminals in each switch position according to the table.
1. Remove the inside handle.
2. Disconnect the 3-P connector from the switch.
3. Check for continuity between the terminals in each switch position according to the table.
