Connecting Rod, Engine
>>
Service Specifications
>>

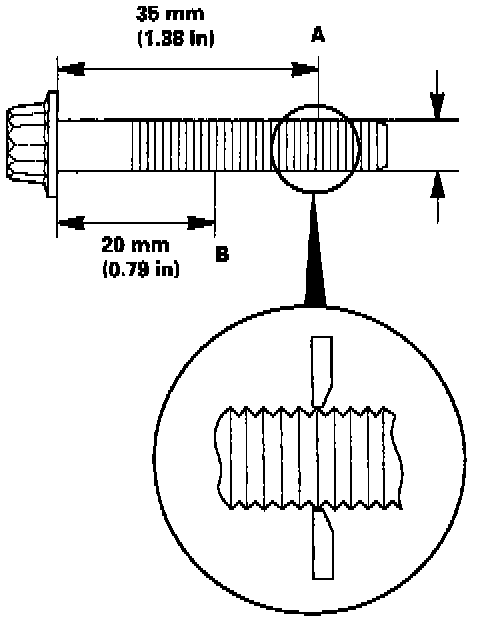

Bolt Diameter
Bolt Diameter
Point A - Point B = Difference in Diameter
Difference in Diameter:
Specification: 0 - 0.1 mm (0 - 0.004 inch)
