Home >> Acura >> 1998 >> CL L4-2254cc 2.3L SOHC (VTEC) MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly >> System Diagram

System Diagram



Lower Engine:

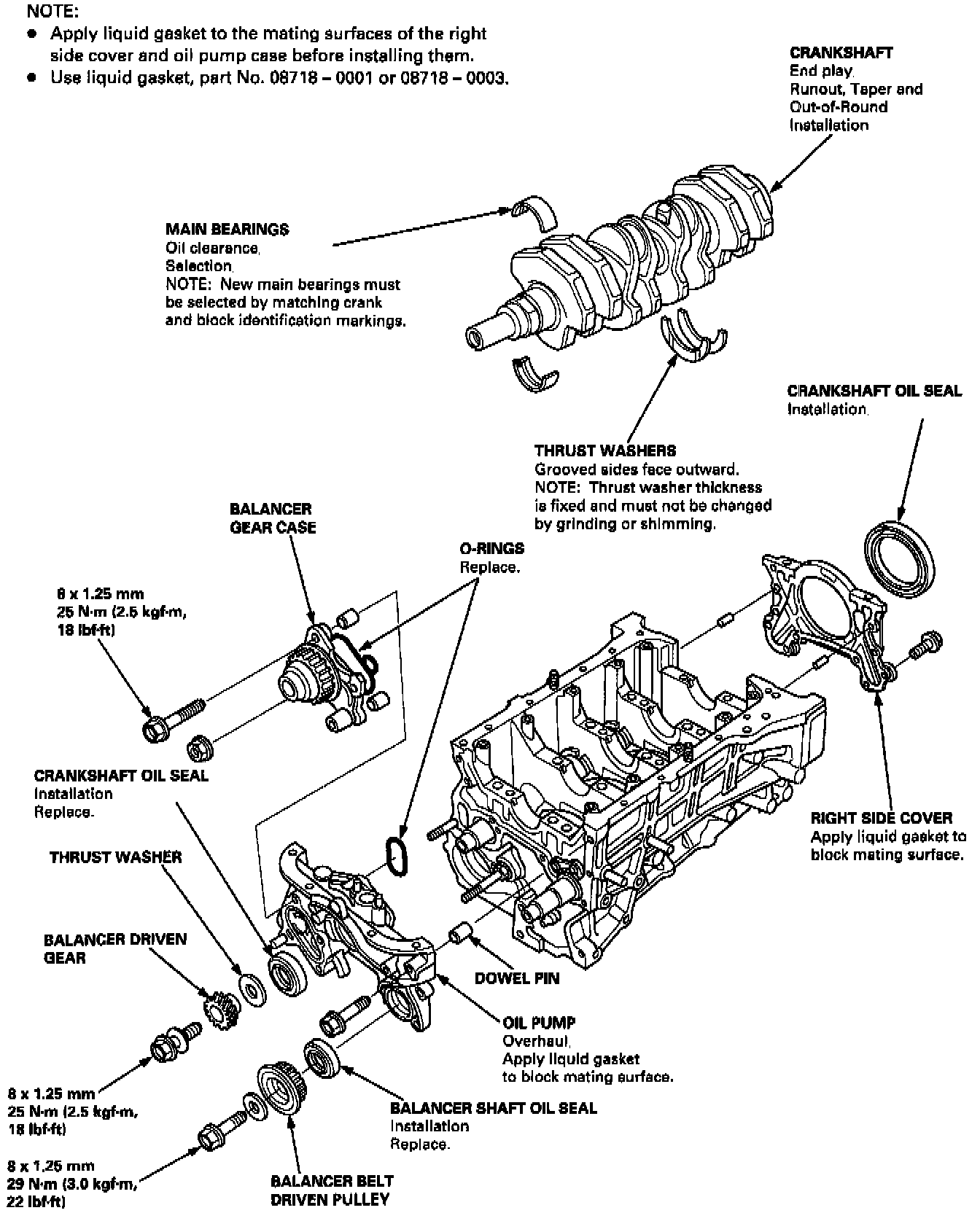

LOWER ENGINE

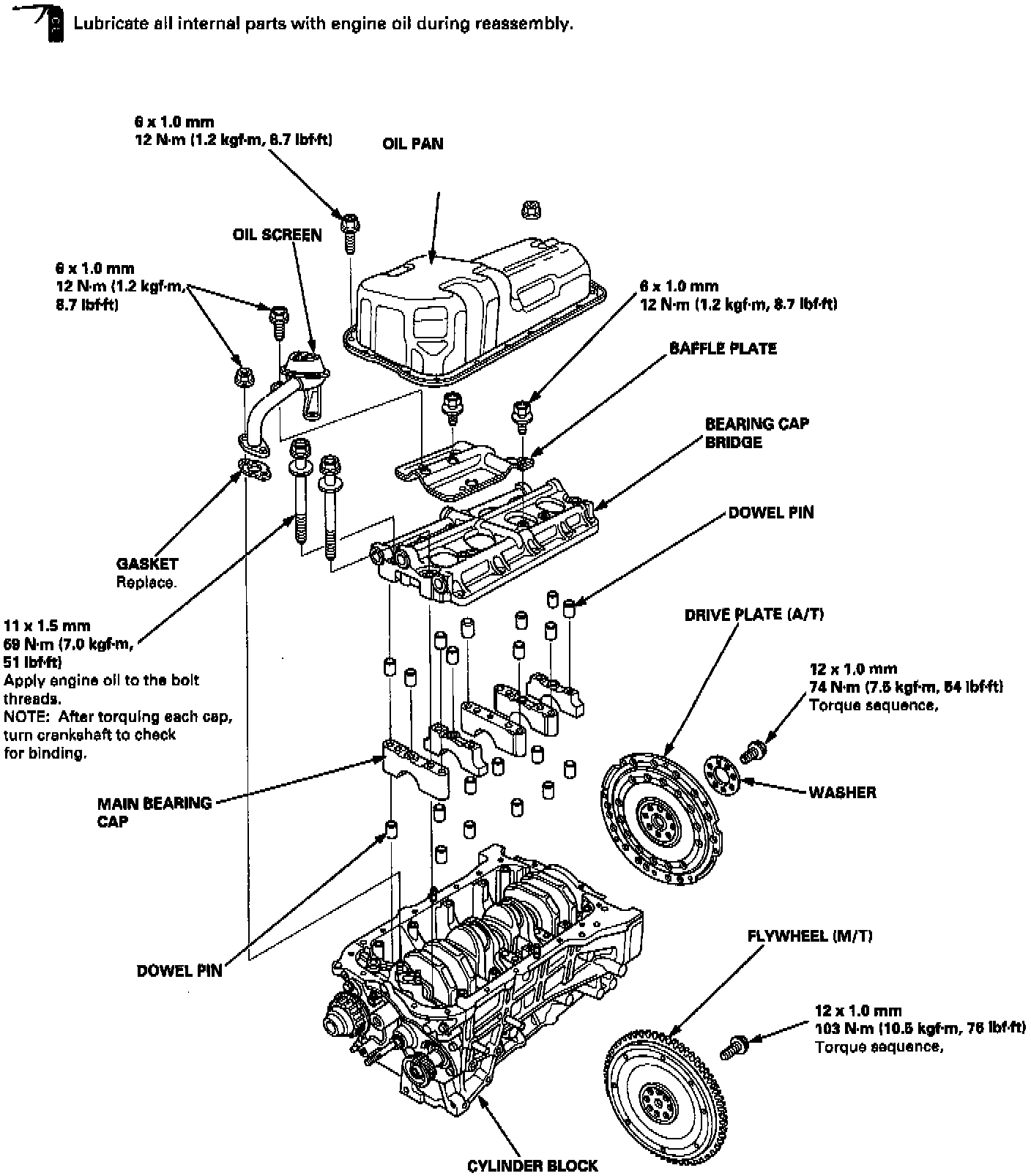

CRANKSHAFT RELATED COMPONENTS

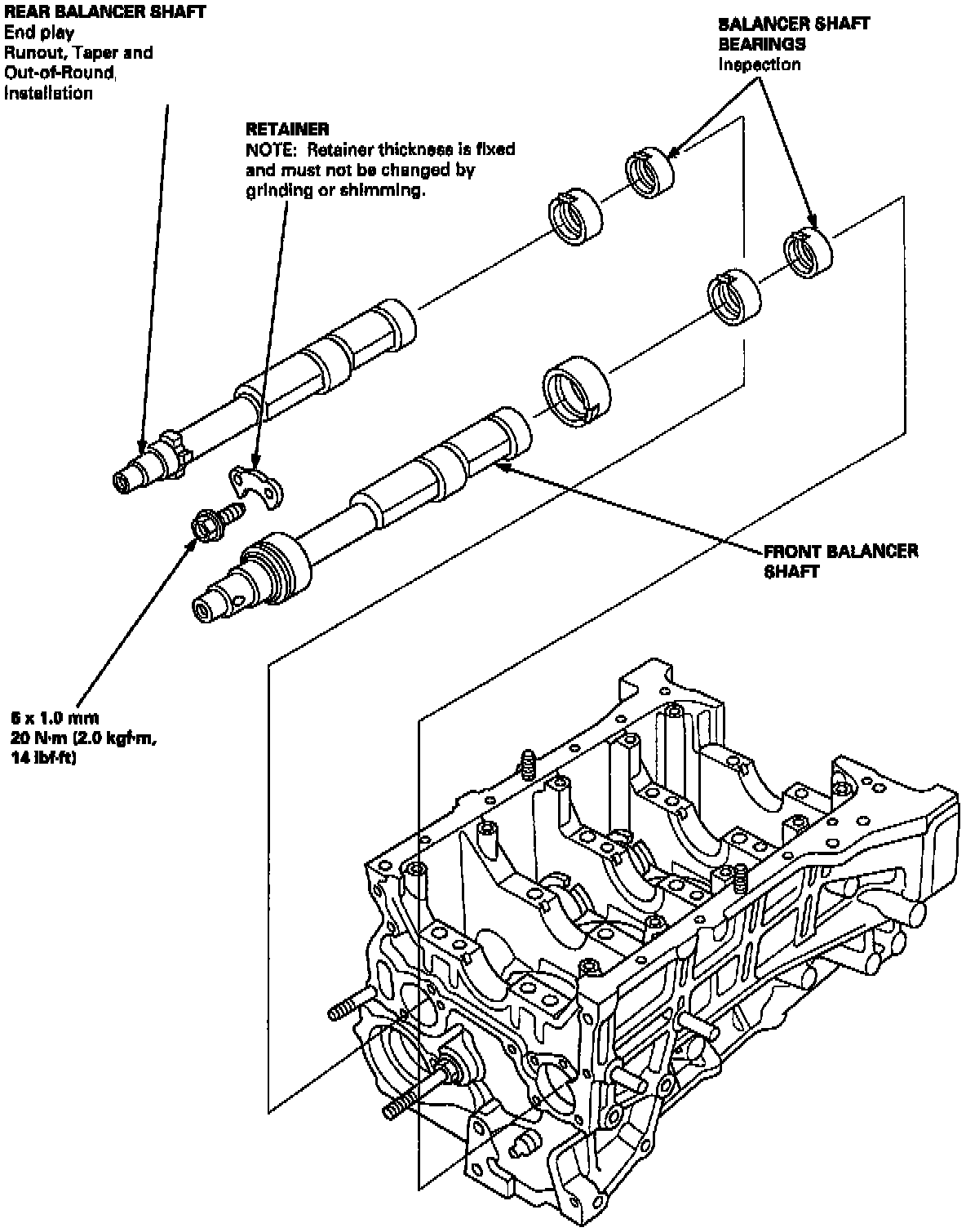

BALANCER SHAFT

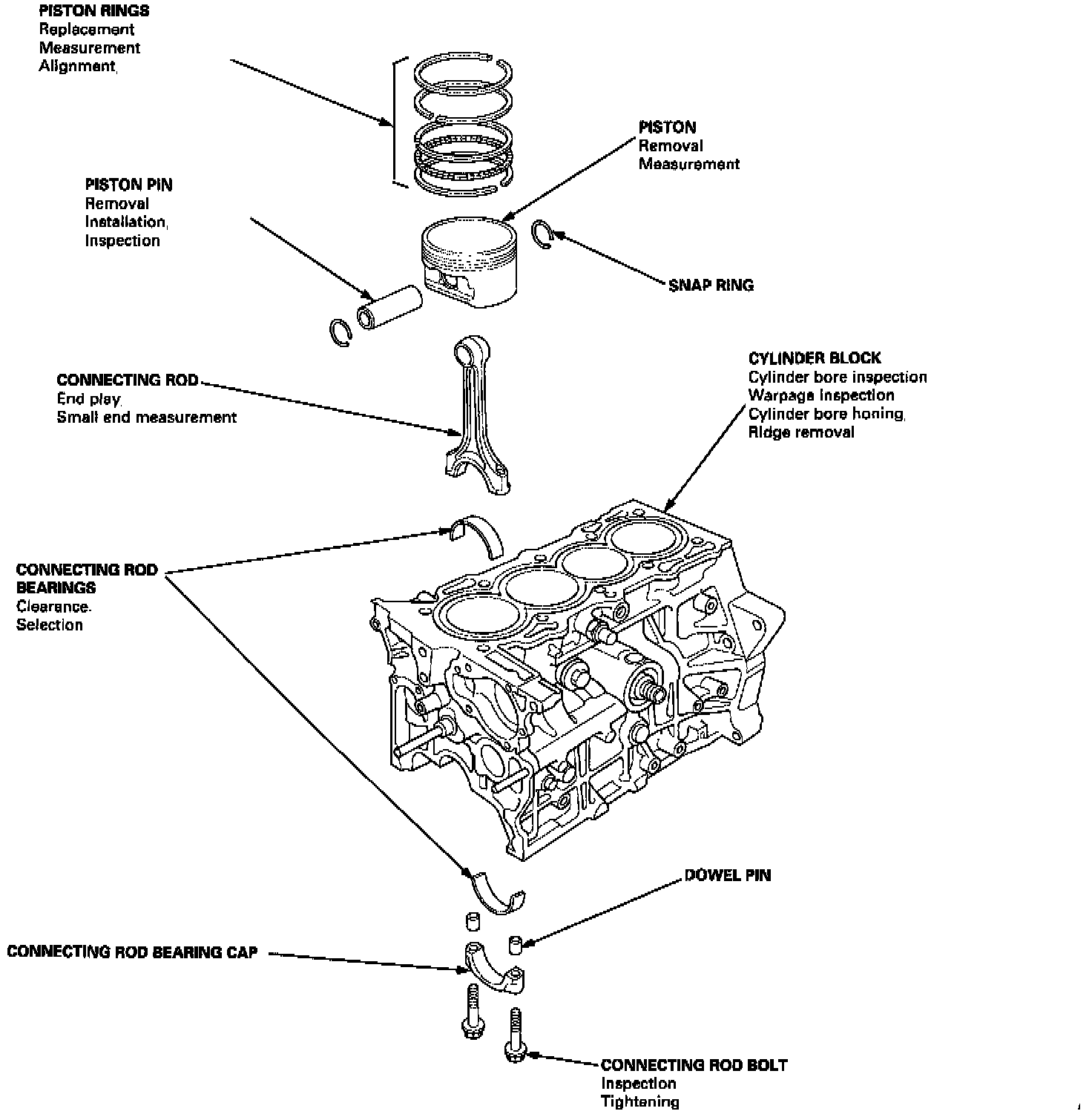

PISTON COMPONENTS
