Windshield Washer Motor: Testing and Inspection

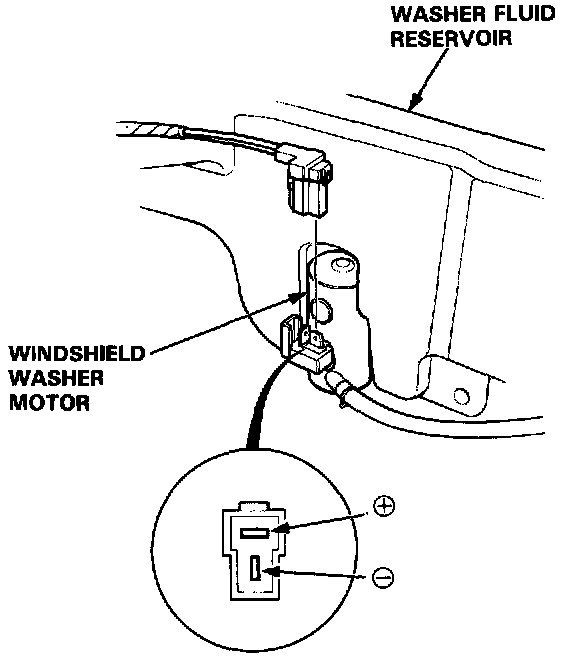

1. Disconnect the 2P connector from the washer motor and remove the front bumper.

Windshield Washer Motor Test:

2. Test the washer motor operation by connecting power to the (+) terminal and ground to the (-) terminal.
^ If the motor fails to run smoothly, replace it.
^ If the motor runs smoothly but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged pump outlet in the motor.
