Home
>>
Acura
>>
1997
>>
NSX V6-3.0L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Windows and Glass
>>
Power Window Switch
>>
Service and Repair
>>
Master Switch Replacement
Master Switch Replacement
1.
Remove the door panel.

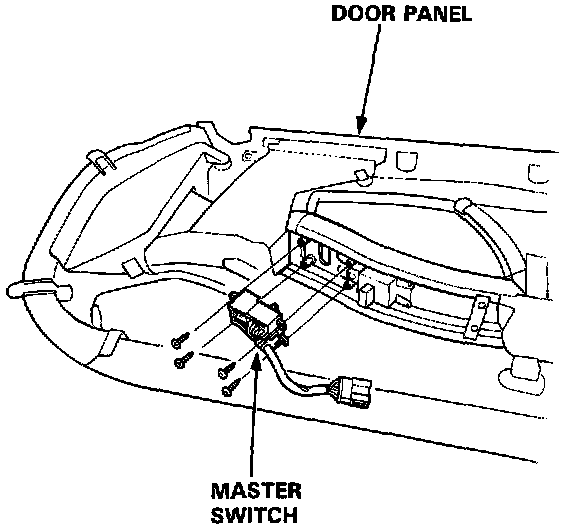

Master Switch Replacement:
2.
Remove the four screws, then remove the power window master switch from the door panel.
