Home >> Acura >> 1997 >> Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Solenoid >> Testing and Inspection >> Troubleshooting Flowchart

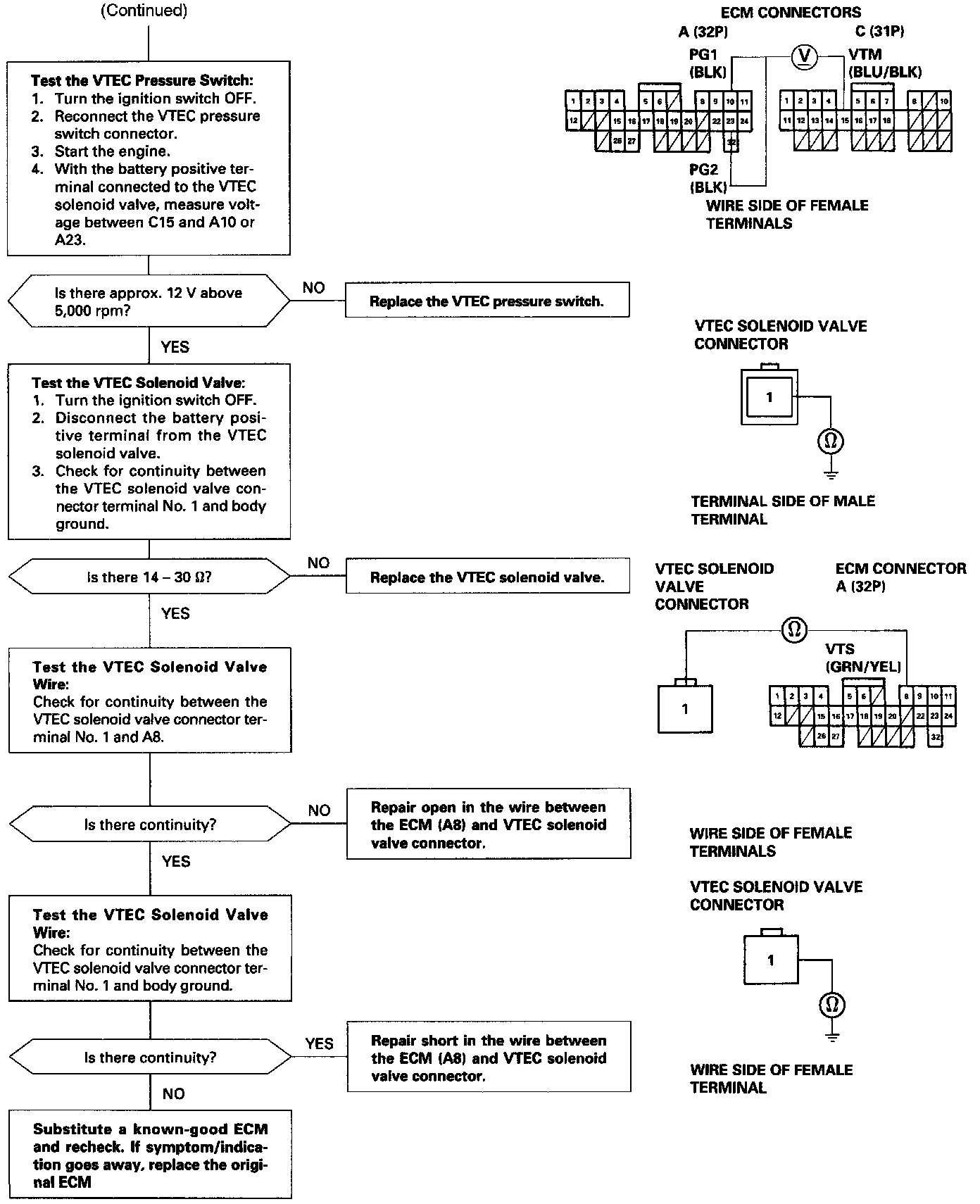

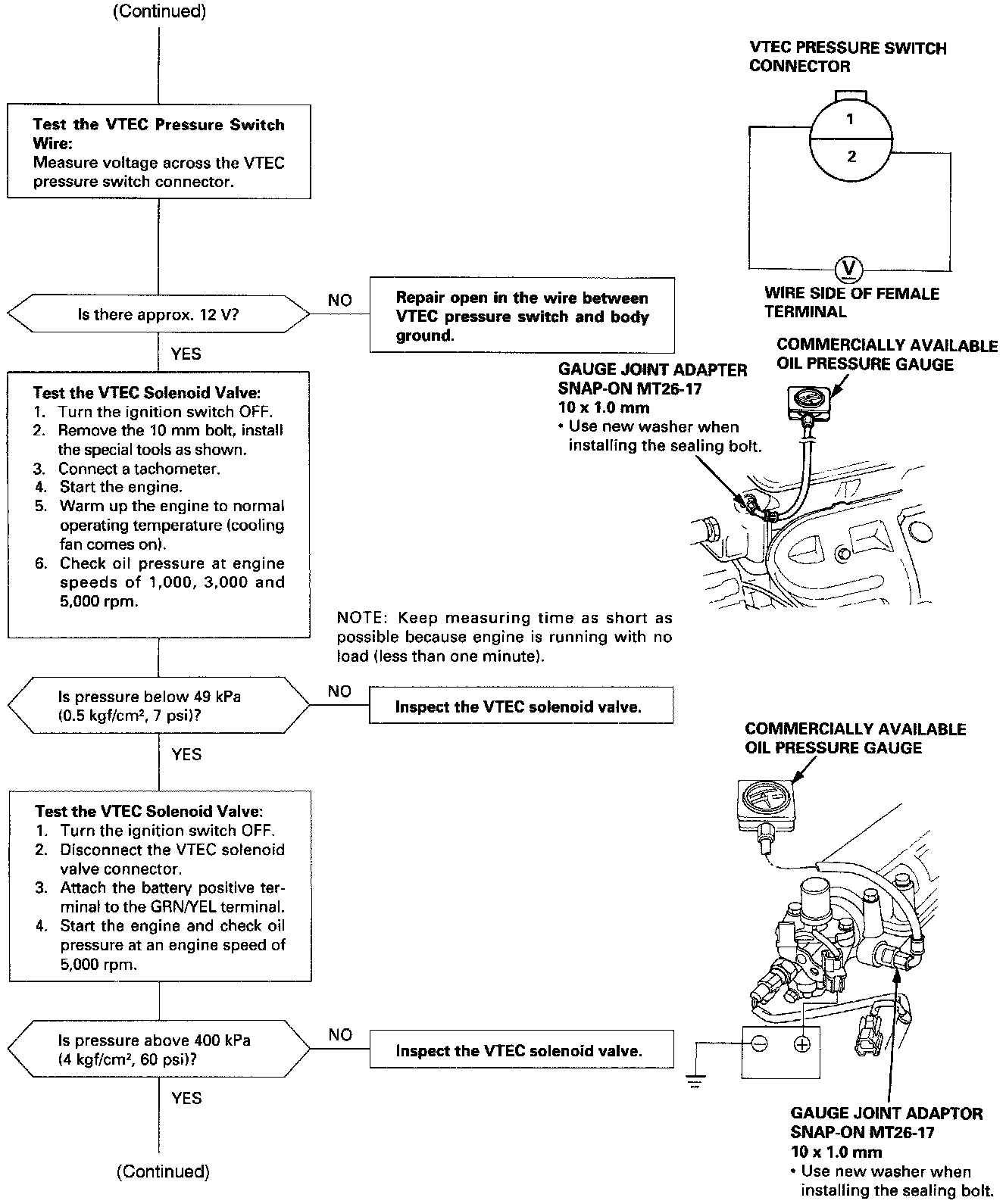

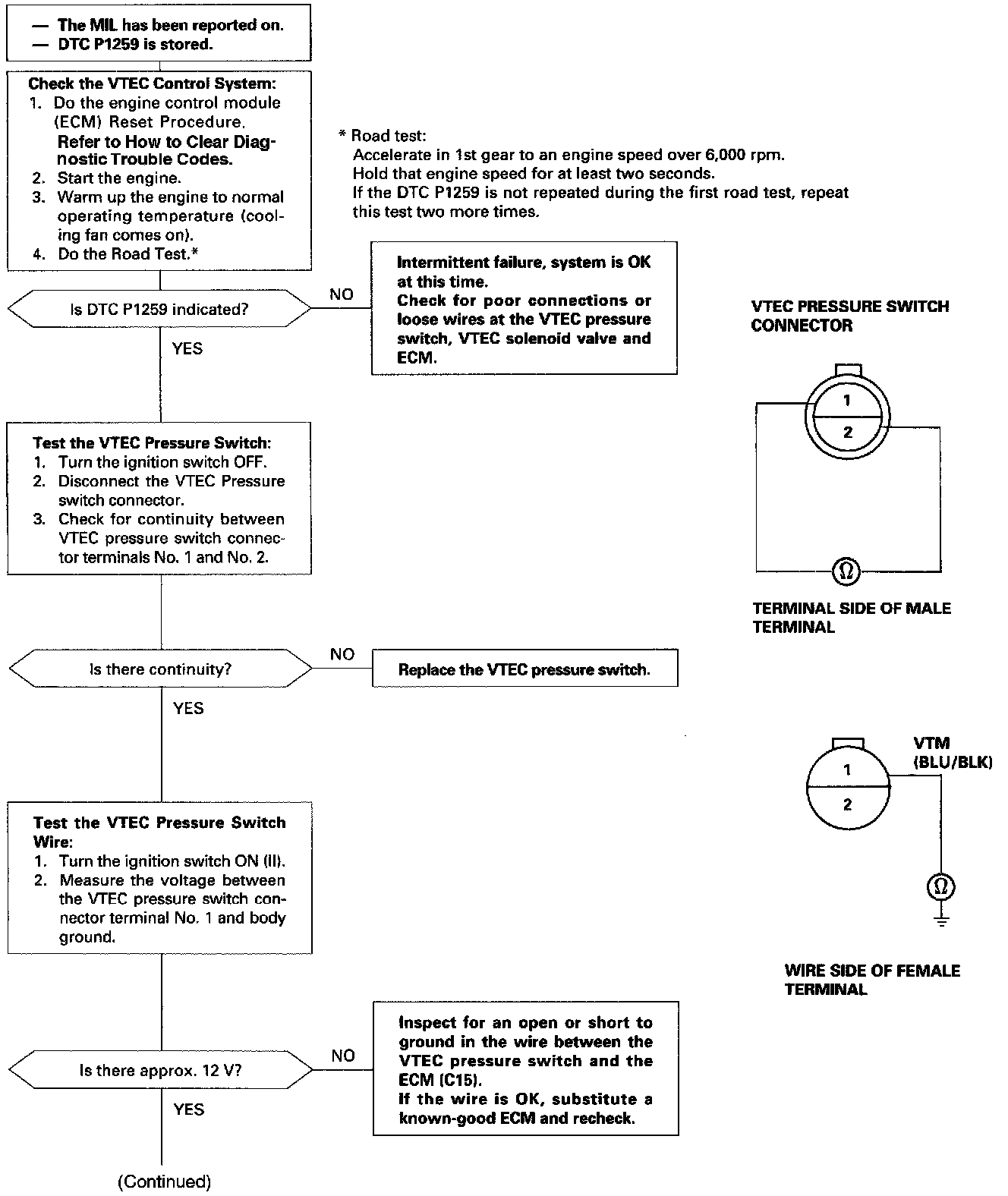

Troubleshooting Flowchart












(_P1259_)
The scan tool indicates Diagnostic Trouble Code (DTC) P1259: A problem in the VTEC Pressure Switch circuit or VTEC Solenoid Valve circuit.
