Home >> Acura >> 1997 >> Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Testing and Inspection >> A/T Shift Position Signal

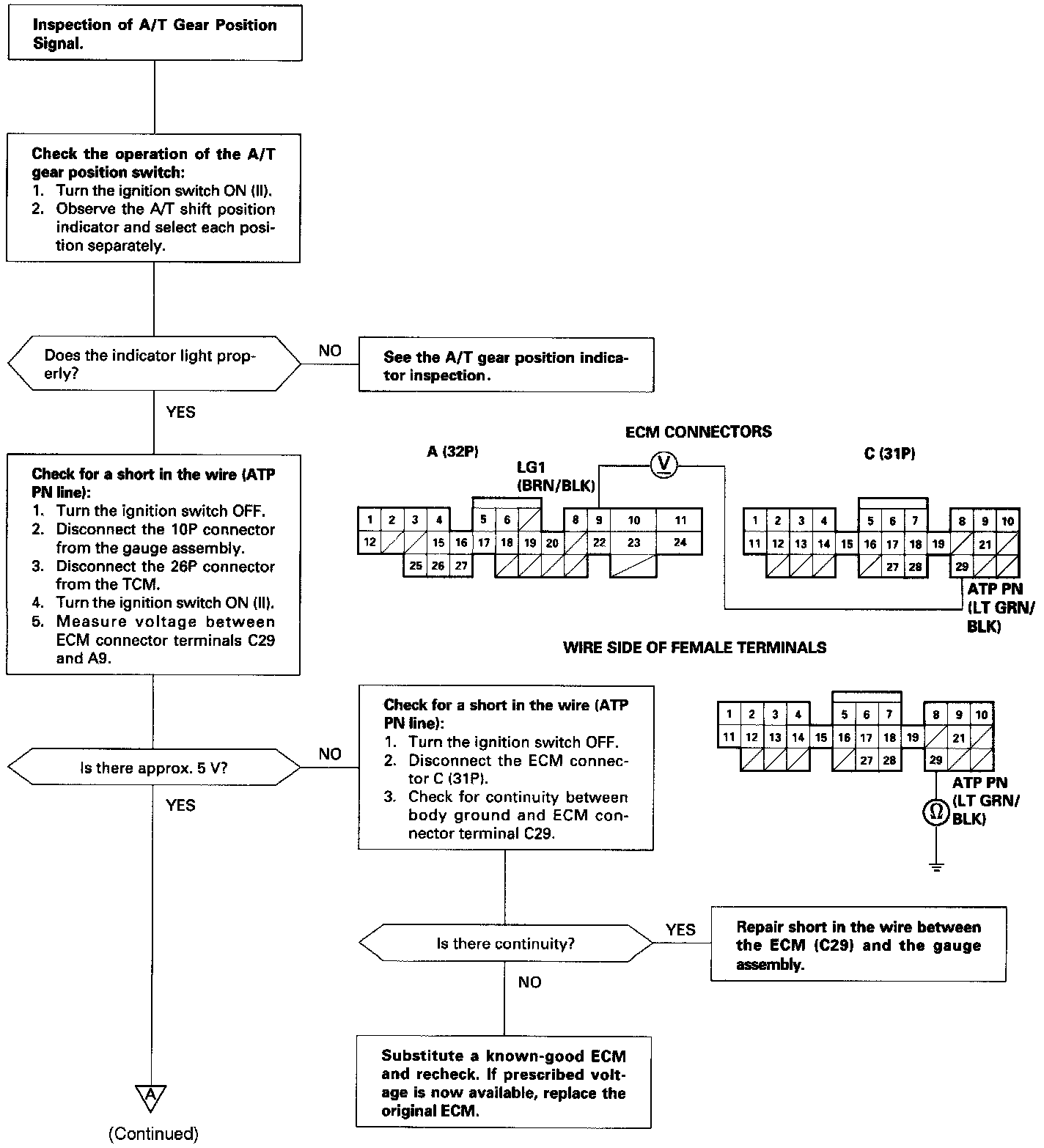

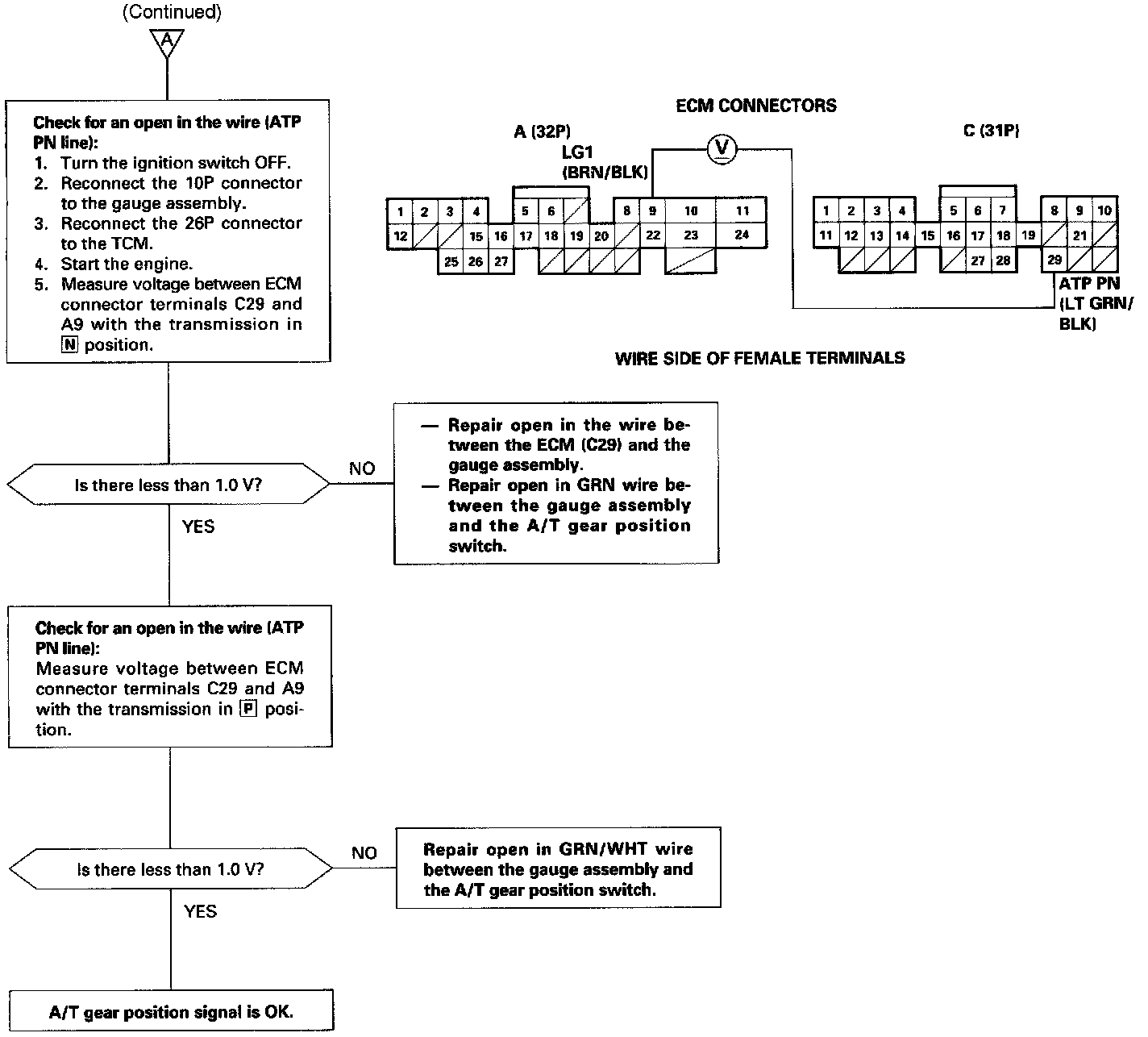

A/T Shift Position Signal








This signals the ECM when the transmission is in (N) or (P) position.
