Mode Control Switch - System Tests - Manual A/C
Mode Control Switch - System Tests - Manual A/C
Mode Control Switch / Test

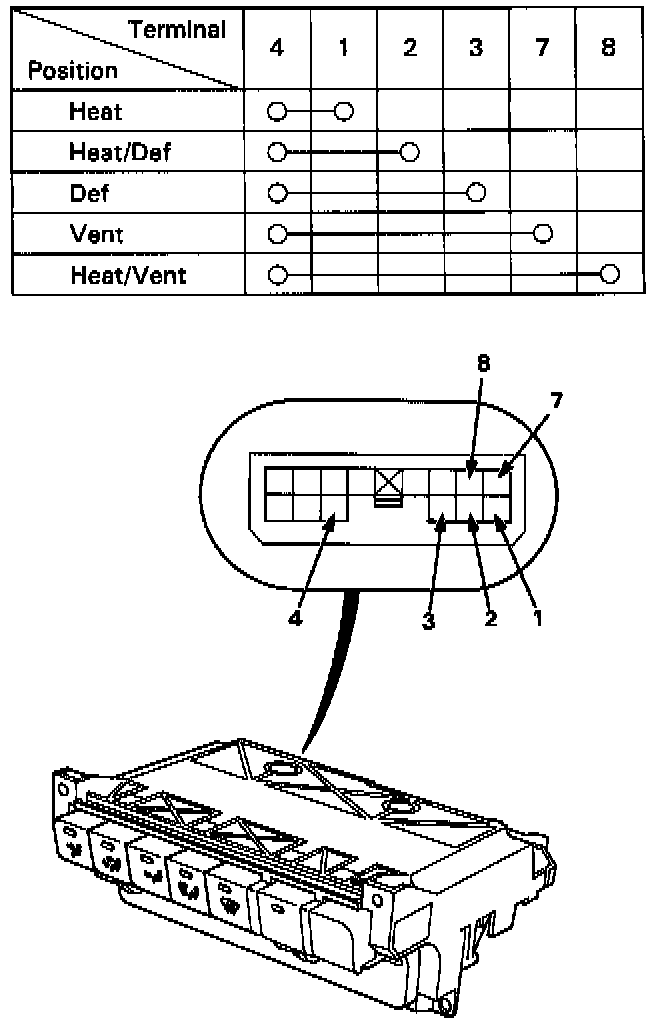

Check for continuity between the terminals according to the table.
