Pressure Tests

PRESSURE TESTING
1. Before testing, be sure the transmission fluid is filled to the proper level.
2. Raise the front of the vehicle, and make sure it is securely supported.
3. Set the parking brake, and block rear wheels securely.
4. Allow the front wheels to rotate freely.
5. Warm up the engine (the radiator fan comes on), then stop it and connect the tachometer.
6. Connect the oil pressure gauges to each inspection hole securely, and do not allow dust or other foreign particles to enter the holes.

TORQUE: 18 Nm (1.8 kgf.m, 13 ft. lbs.)

7. Start the engine, and run it at 1,500 rpm.

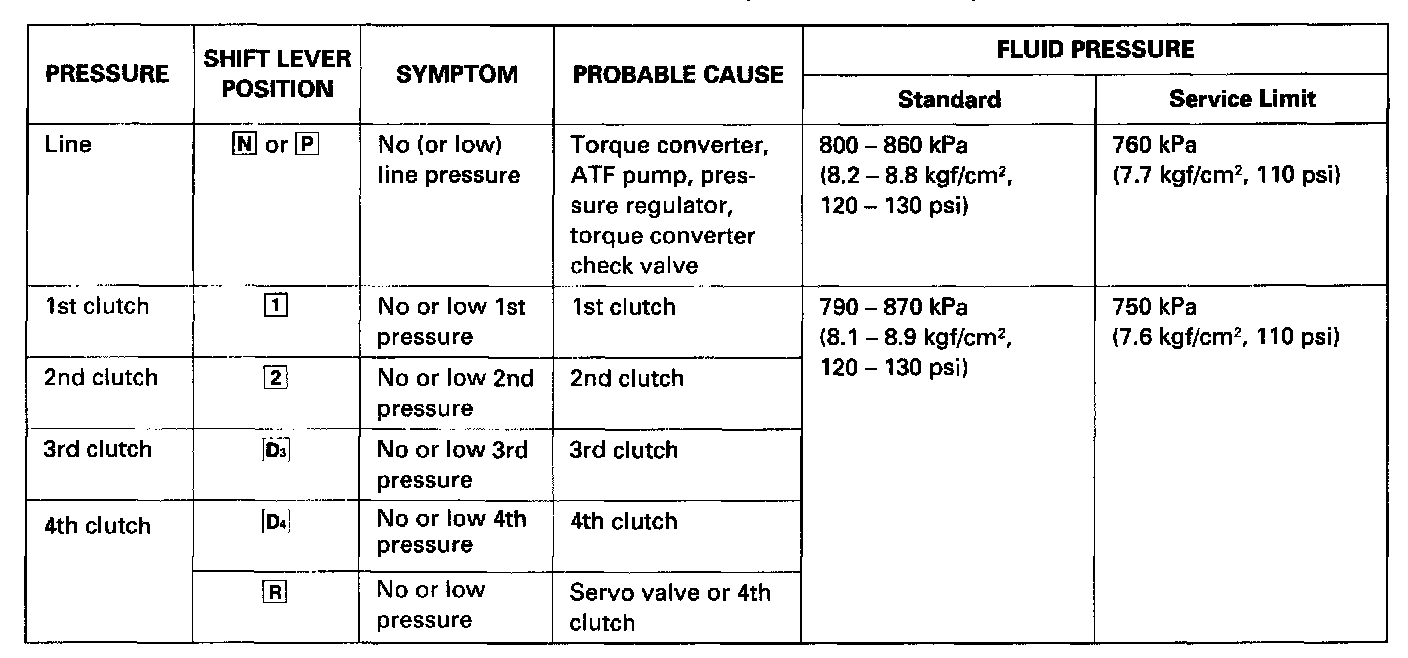

8. Shift to [N] or [P] position, and measure line pressure.

NOTE: Higher pressure may be indicated if measurements are made in shift lever positions other than [N] or [P] position.




9. Shift to the respective shift lever position, and measure line pressure and clutch pressure.
10. Install the sealing bolt with anew sealing washer, and tighten the bolt to the specified torque.

TORQUE: 18 Nm (1.8 kgf.m, 13 ft. lbs.)

NOTE: Do not reuse old sealing washer.
