TIGHTENING SEQUENCE/SPECIFICATIONS

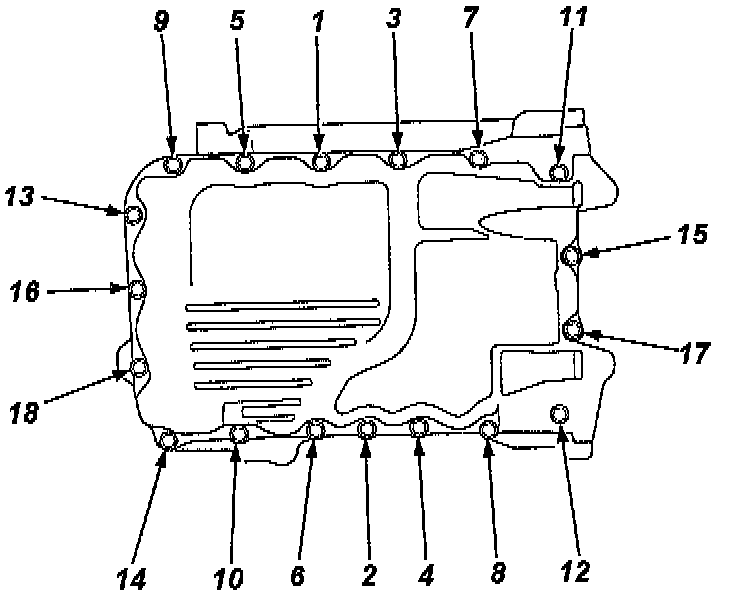

Tighten bolts to 12 Nm (107 in. lbs.). Refer to image for tightening sequence.
