Rear Seat Belt Buckle

Rear Seat Belt Buckle/Centre Belt Tongue:

Centre Anchor Bolt Construction:

1. Remove the rear seat cushion.

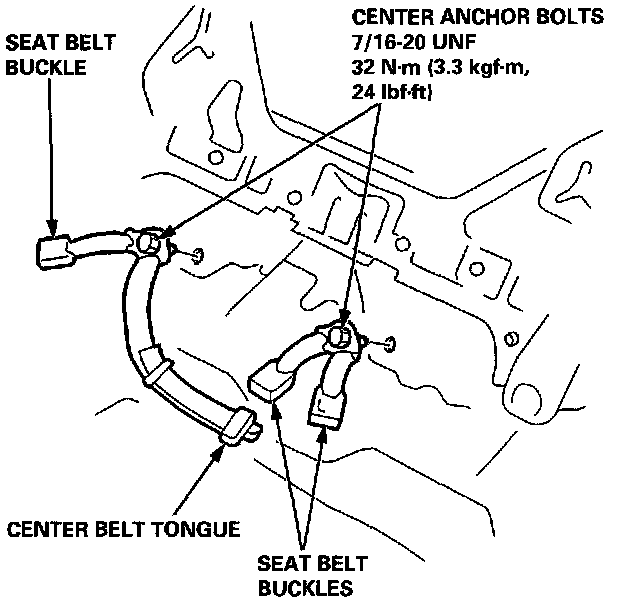

2. With a 14 mm socket or box-end wrench, remove the center anchor bolts, then remove the seat belt buckles and center belt tongue.
3. Installation is the reverse of the removal procedure.

NOTE:

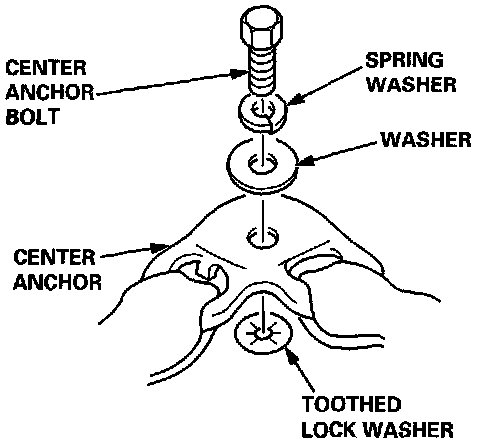

^ Make sure you assemble the washers on the center anchor bolts as shown.
^ Before attaching the seat cushion, make sure there are no twists or kinks in the center belts.
