Front Seat Belt Buckle

1. Remove the front seat.

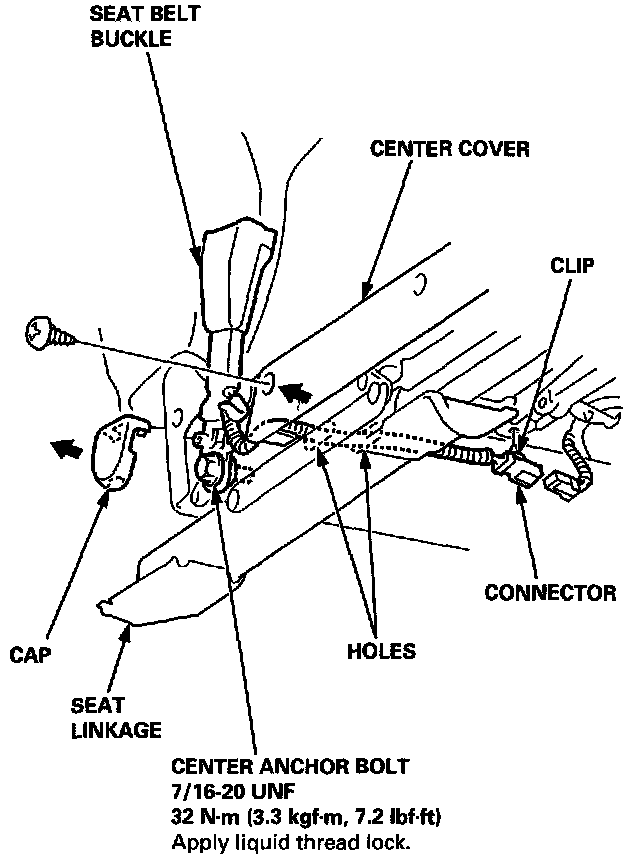

Front Seat Belt Buckle:

2. Driver's: Remove the cap. Remove the center cover mounting screw, detach the connector, then pull out the seat belt switch harness from the seat linkage. Passenger's: Remove the center cover.

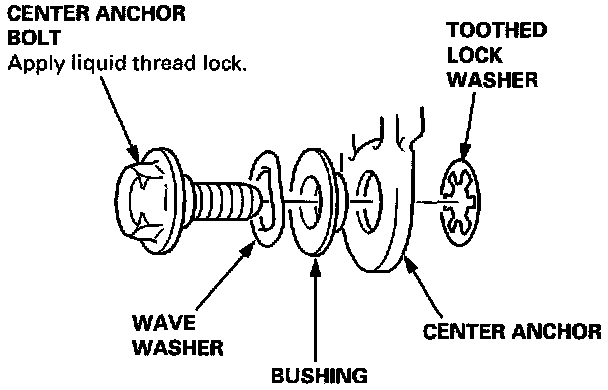

Centre Anchor Bolt Construction:

3. With a 14 mm socket or box-end wrench, remove the center anchor bolt, then remove the seat belt buckle.

4. Installation is the reverse of the removal procedure.

NOTE: Make sure you assemble the washers and bushing on the center anchor bolt as shown.
