Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
PCM

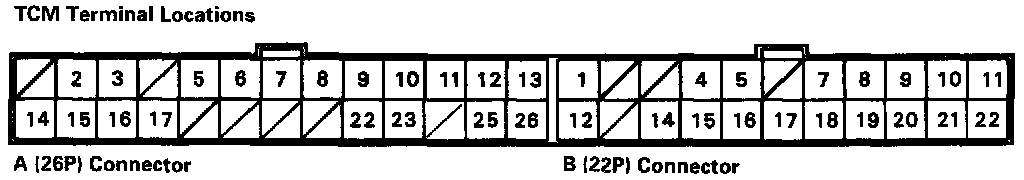

Terminal Locations

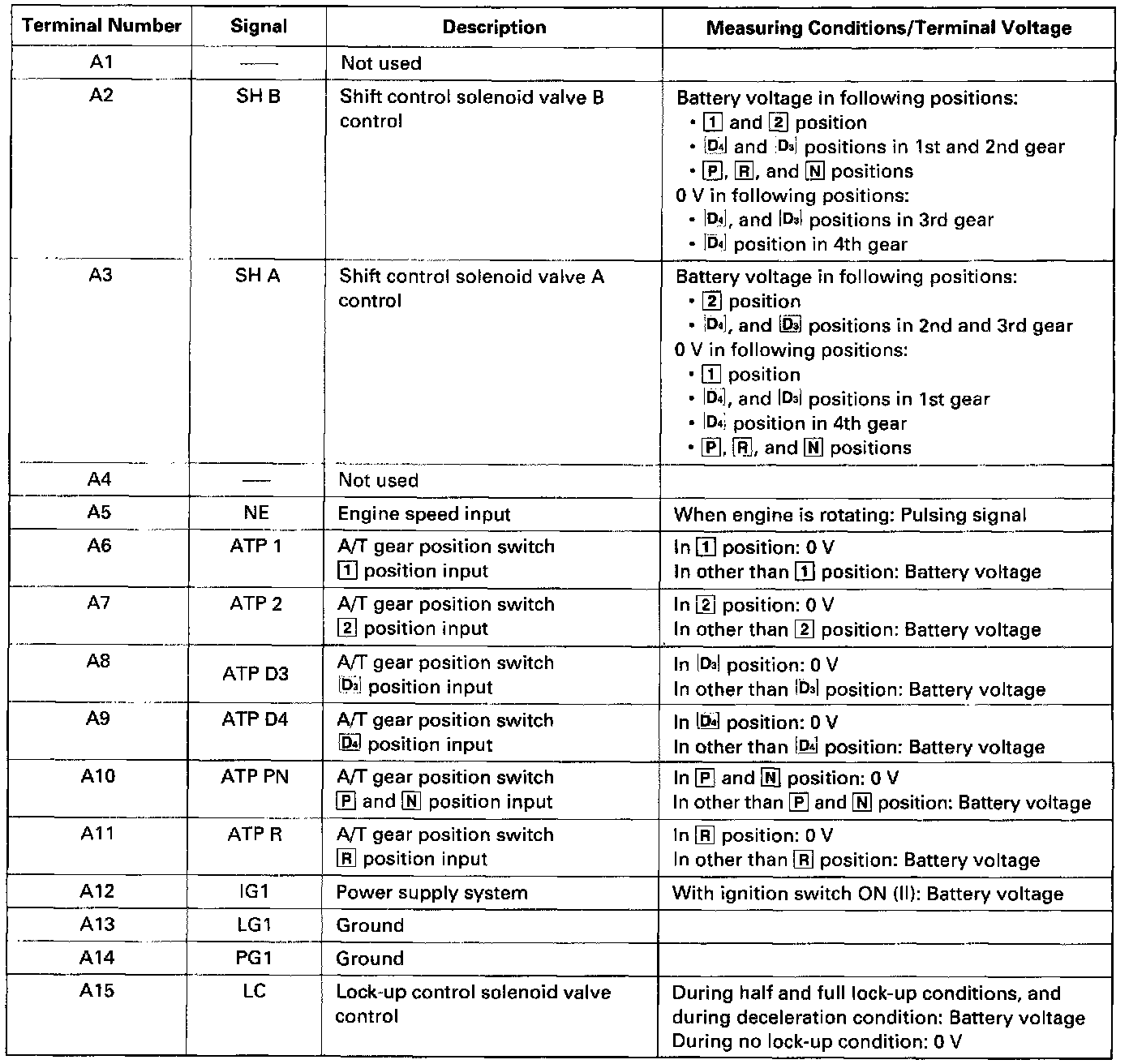

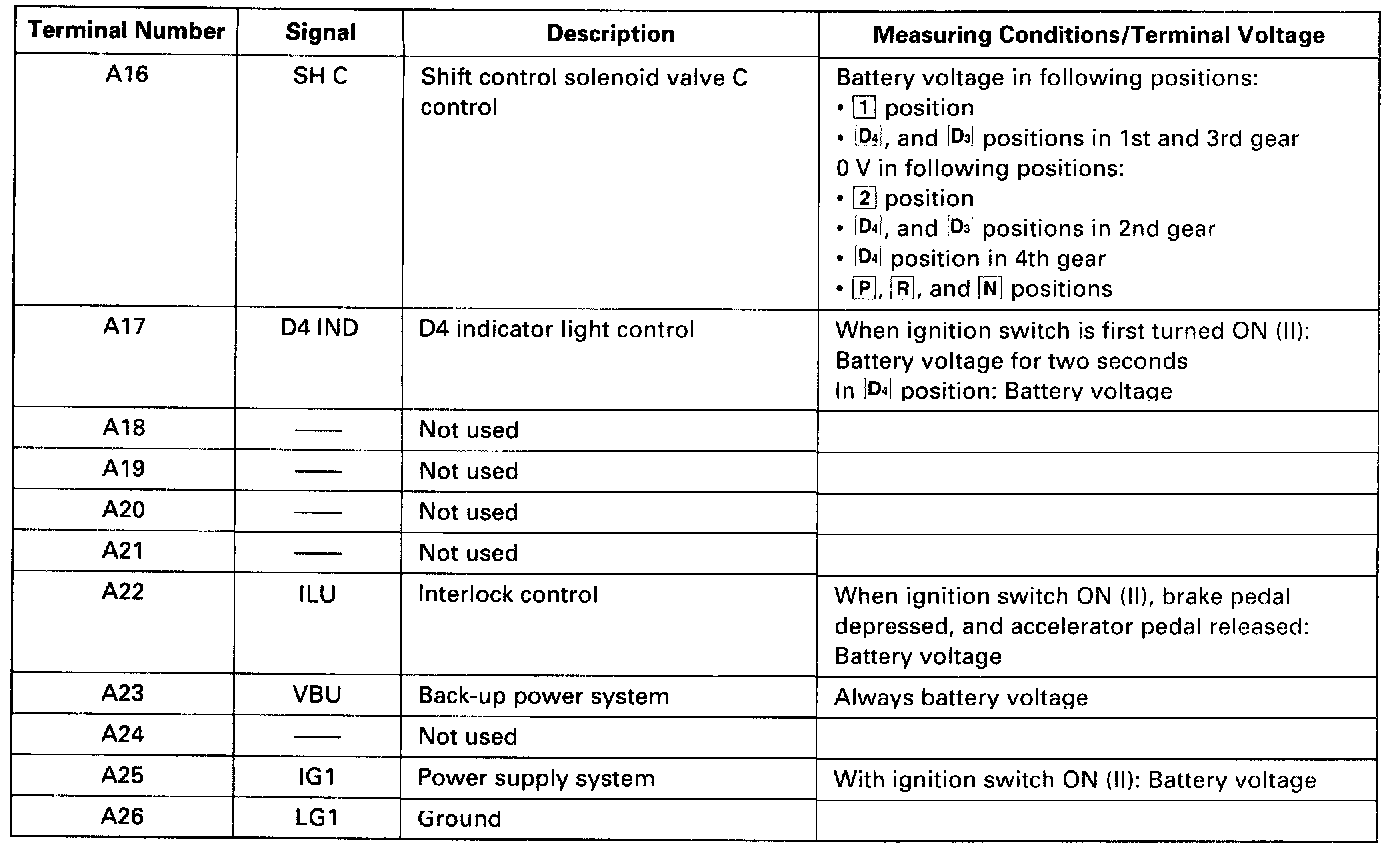

PCM
CONNECTOR A (26P)

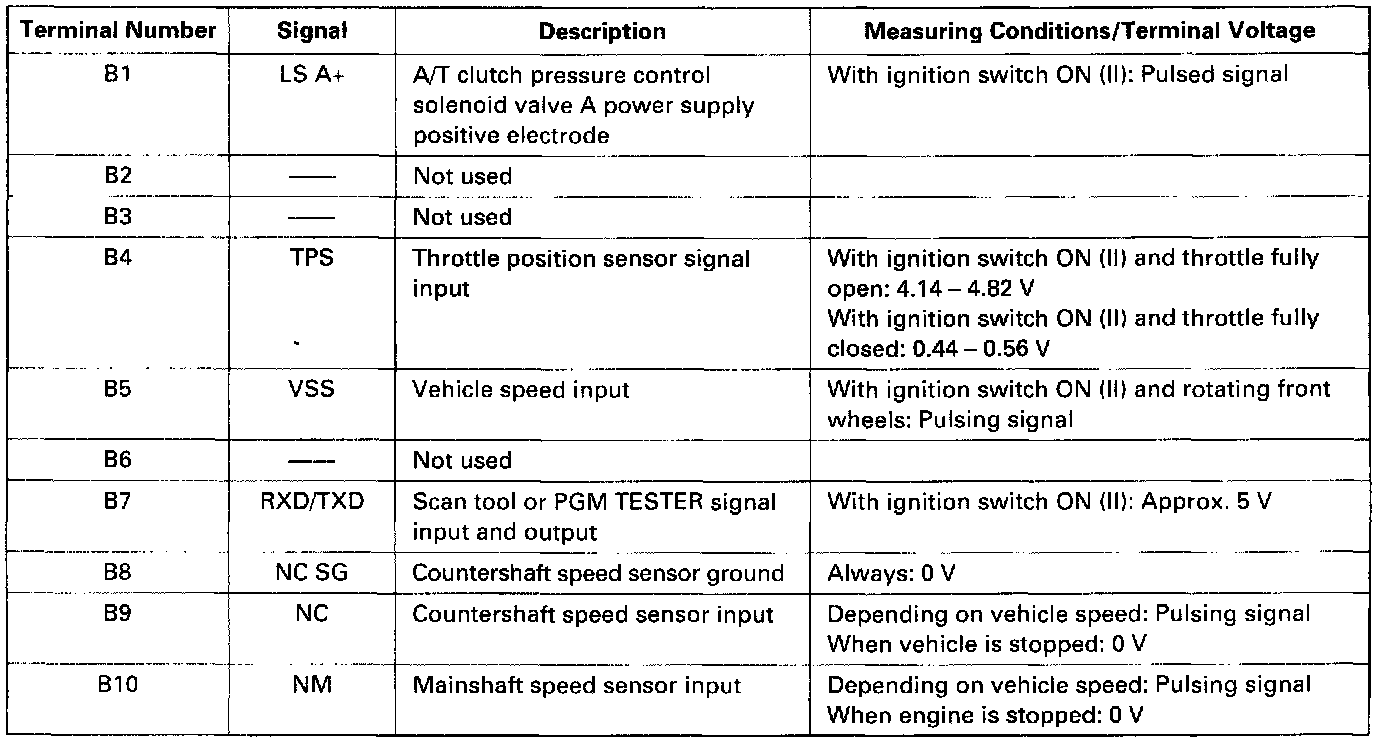

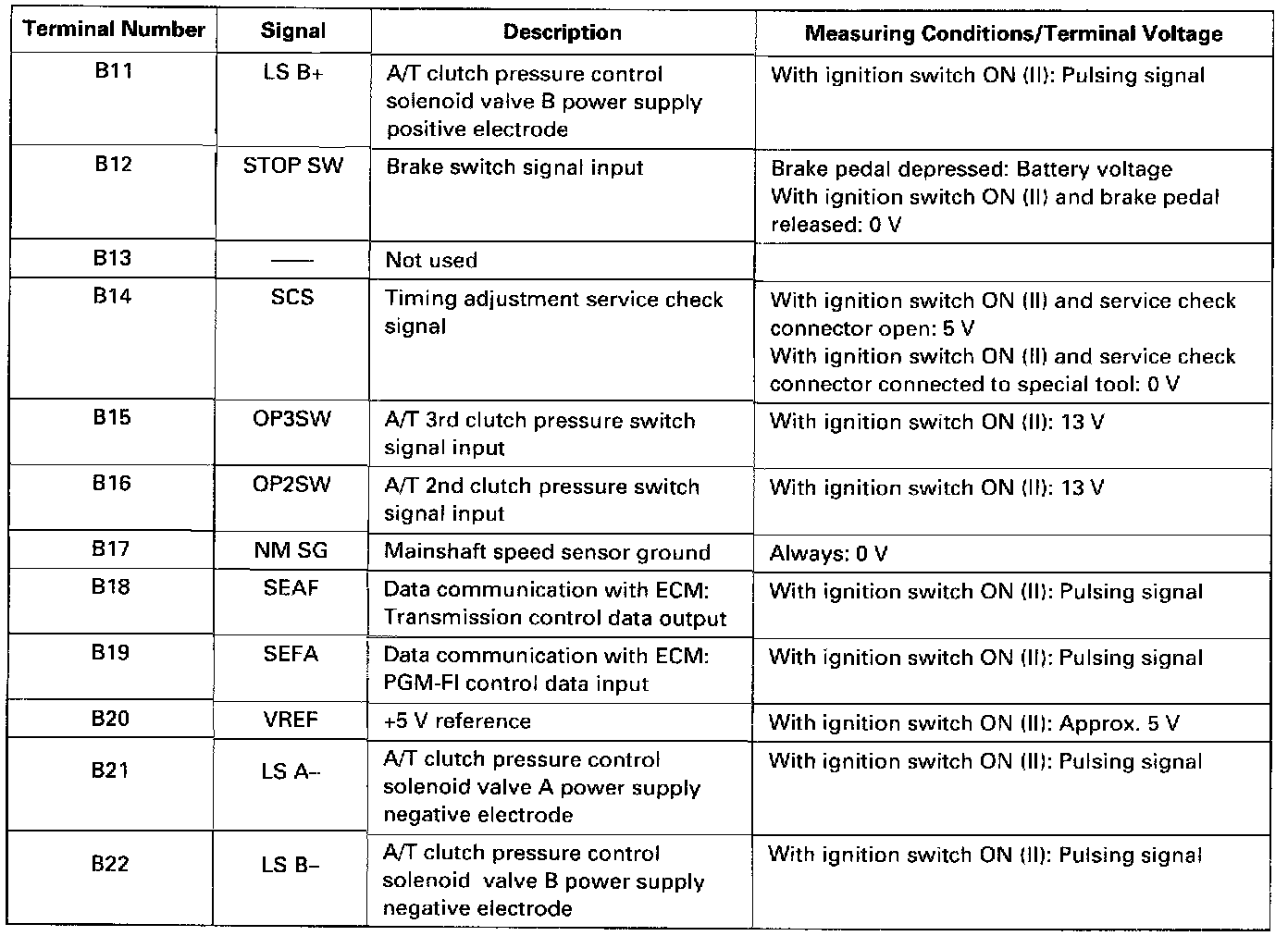

PCM
CONNECTOR B (22P)
