Pressure Regulating Solenoid: Service and Repair

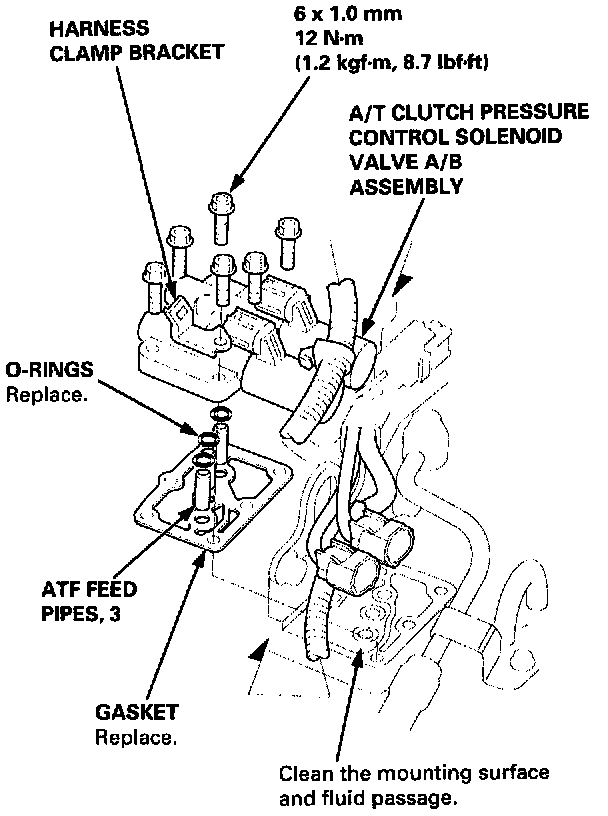

1. Remove the mounting bolts and the A/T clutch pressure solenoid valve A/B assembly.
2. Clean the mounting surface and fluid passage of the A/T clutch pressure solenoid valve A/B assembly and transmission housing.
3. Install a new A/T clutch pressure solenoid valve A/B assembly with a new gasket. Reuse the ATF feed pipes.
4. Check the A/T clutch pressure solenoid valve connectors for rust, dirt, or oil, then connect it securely.
