Pinout Values and Diagnostic Parameters

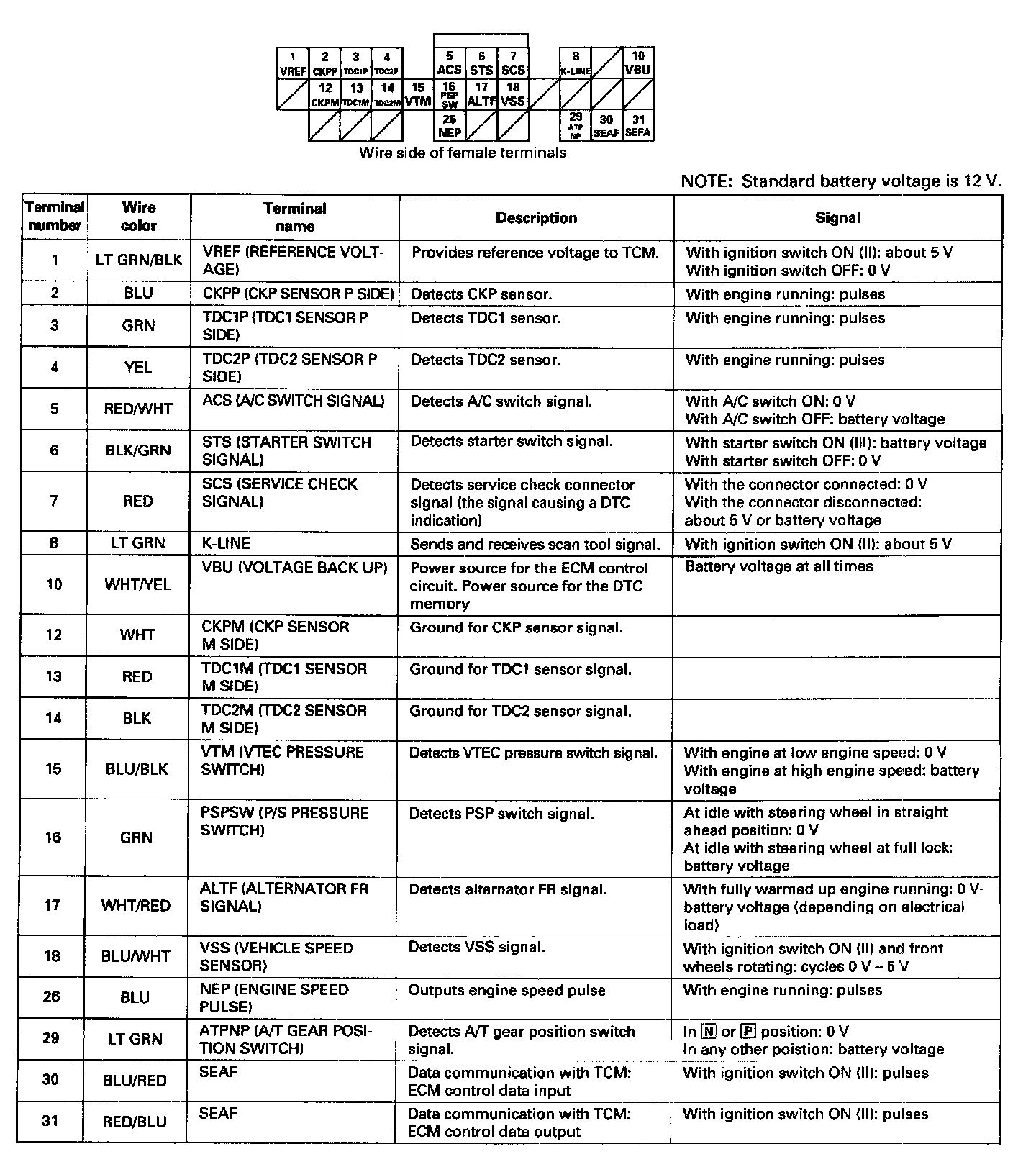

ECM Connector A (32P):

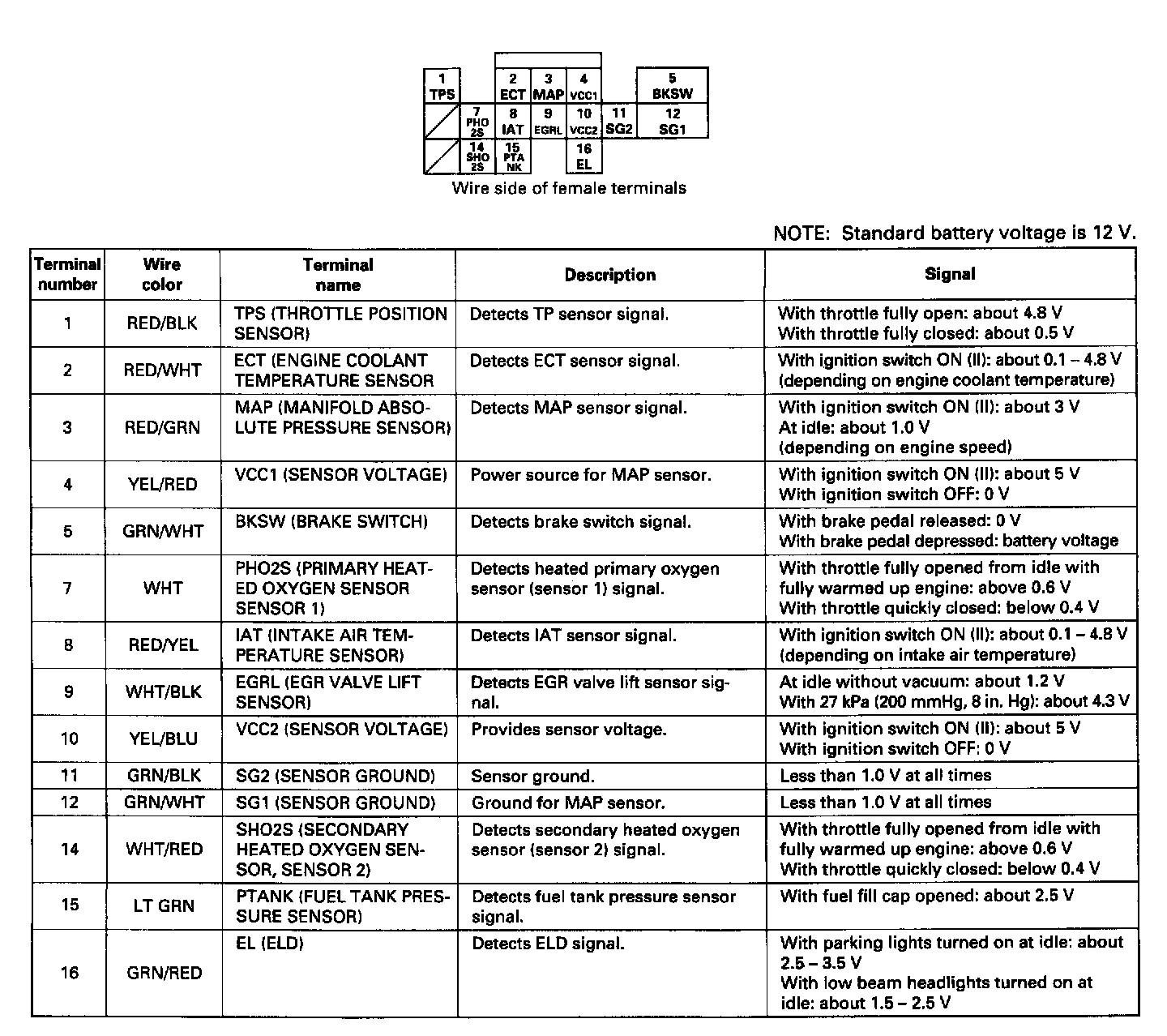

ECM Connector C (31P):




ECM Connector D (16P):
