Vehicle Speed Sensor
>>
Testing and Inspection
>>
M/T
M/T

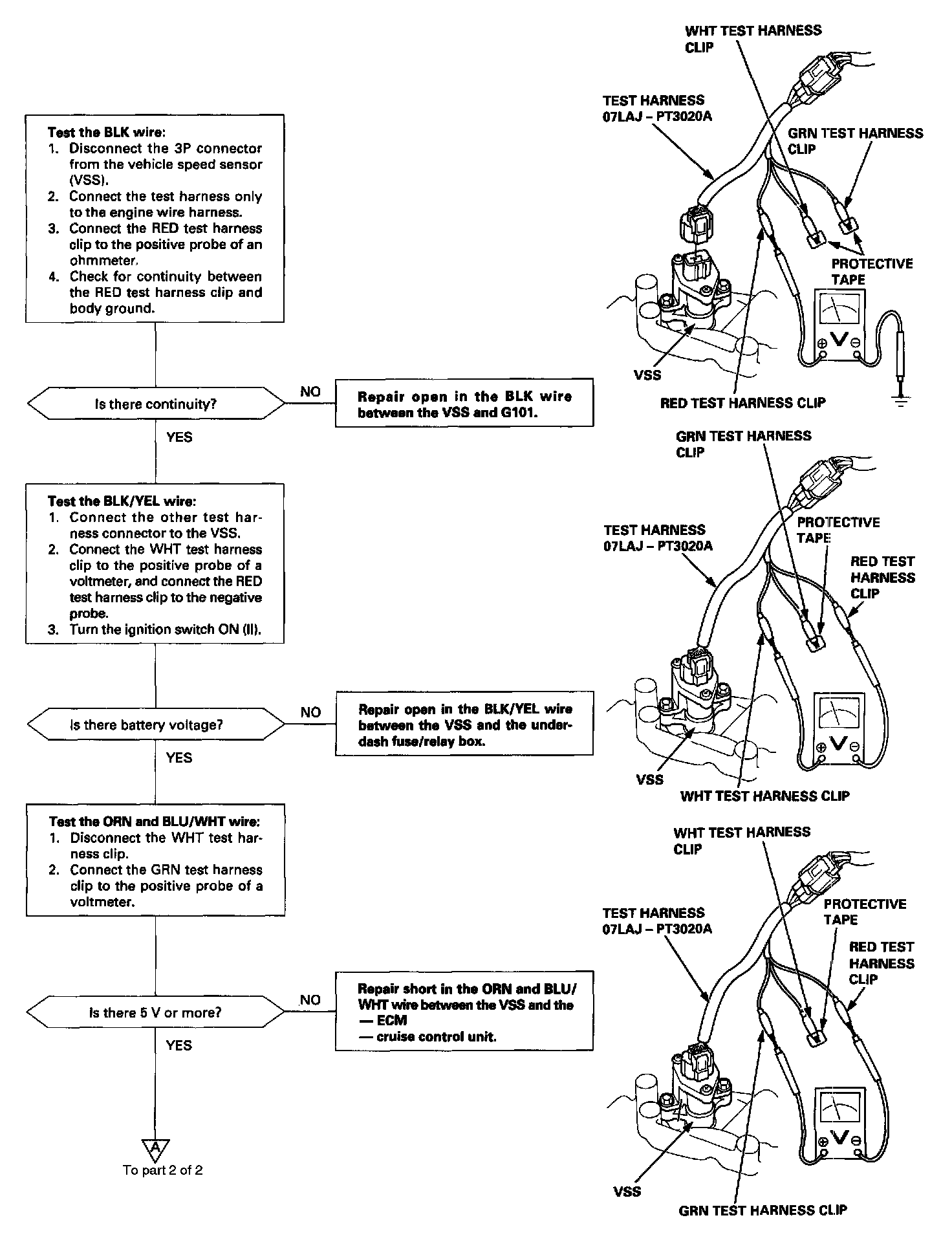

Troubleshooting (M/T) (Part 1 Of 2):

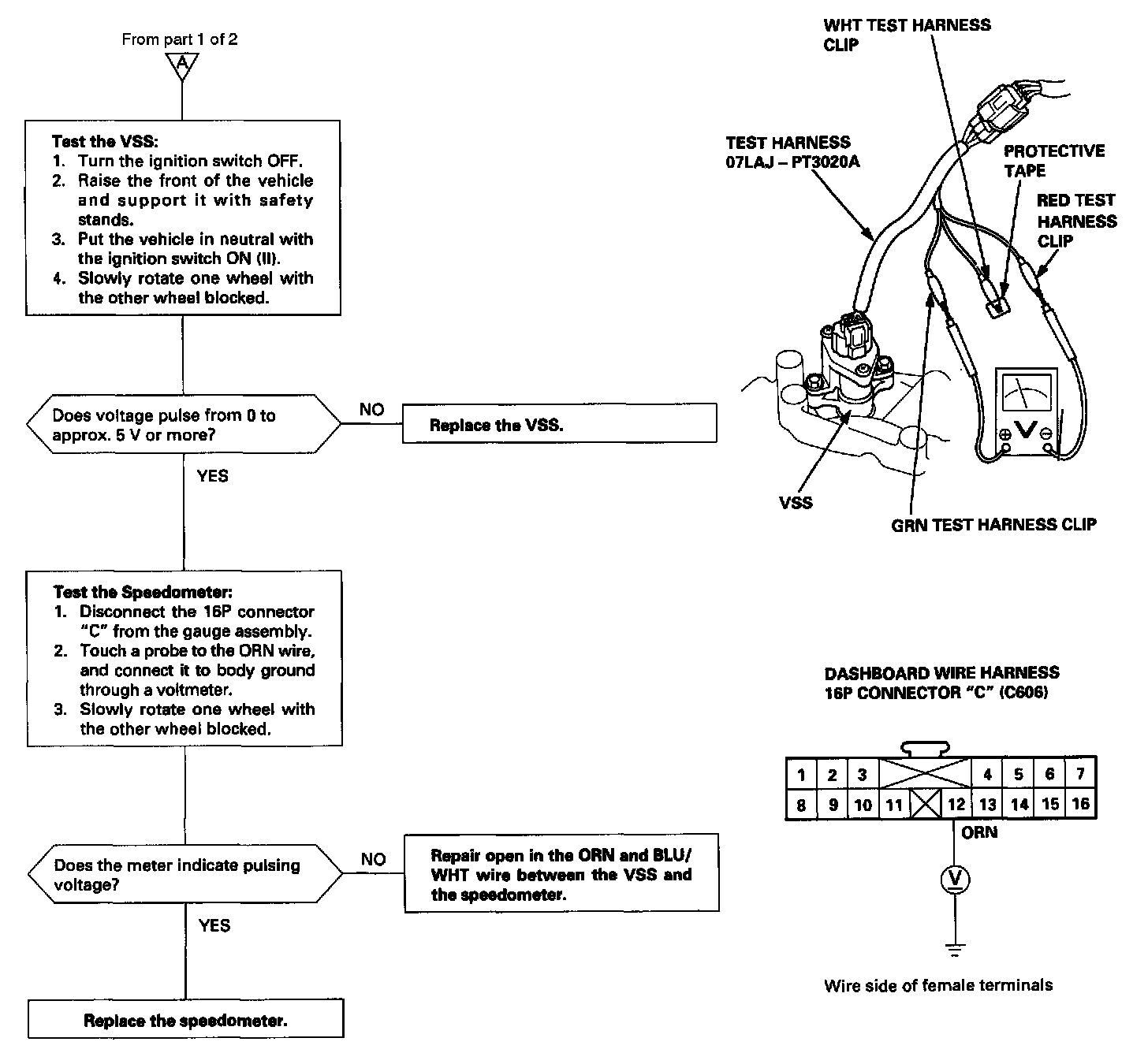

Troubleshooting (M/T) (Part 2 Of 2):
Before testing, inspect the No. 4
(7.5 A)
fuse in the under-dash fuse/relay box.
