Water Pump Replacement

REPLACEMENT
1. Remove the timing belt.
2. Remove the timing belt tensioner.

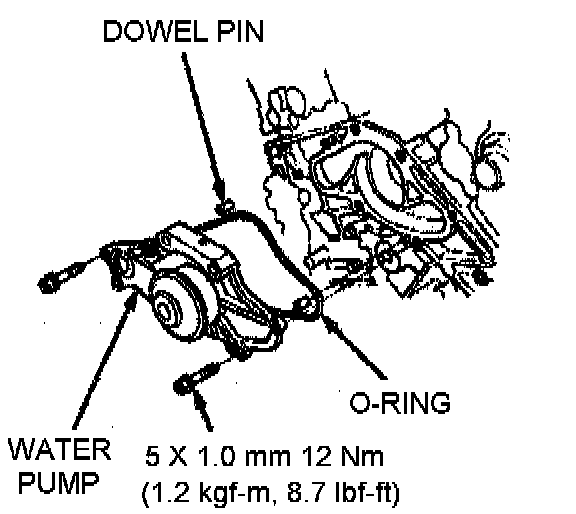

3. Remove the water pump by removing five bolts.

NOTE: Inspect, repair and clean the O-ring groove and mating surface with the cylinder block.

4. Install the water pump in the reverse order of removal.

NOTE:
- Keep the O-ring in position when installing.
- Clean up any spilled engine coolant.
