Removal

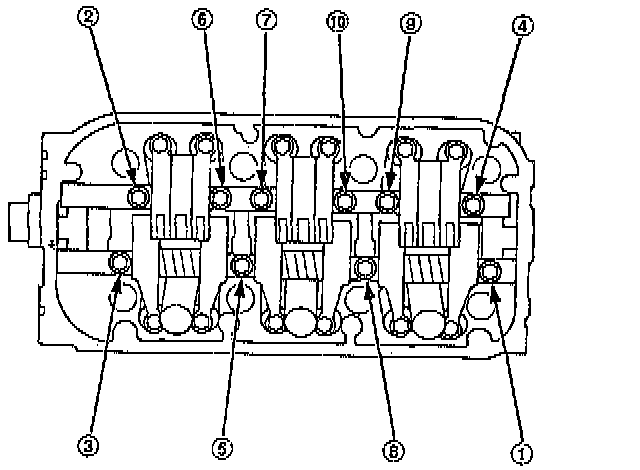

Camshaft Holder Bolt Loosening Sequence:

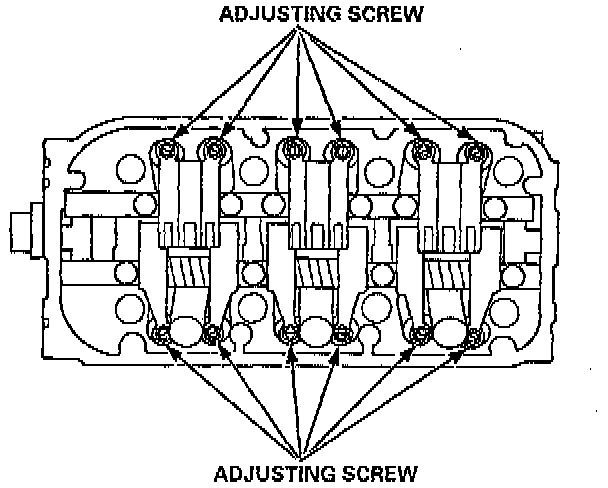

1. Loosen the adjusting screws, then remove the bolts and the rocker arm assembly.

NOTE:
- Unscrew the rocker shaft mounting bolts two turns at a time, in a crisscross pattern, to prevent damaging the valves or rocker arm assembly.
- When removing the rocker arm assembly, do not remove the rocker shah mounting bolts. The bolts will keep the springs and the rocker arms on the shafts.
