Alignment

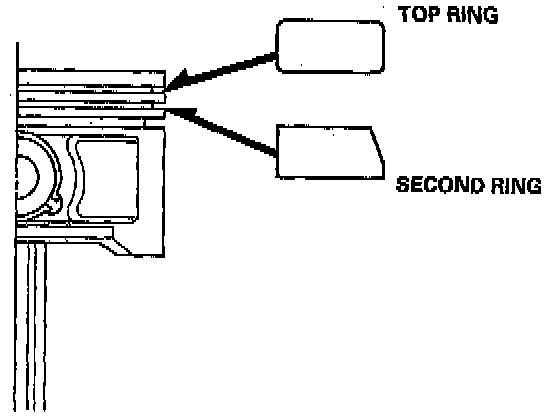

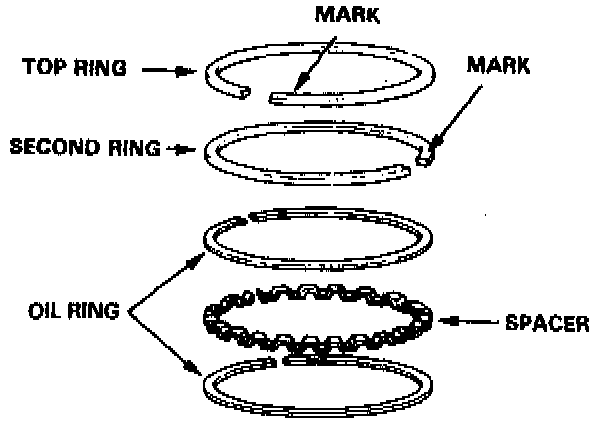

1. Install the rings as shown.

NOTE:
- The top ring has a 1B mark.
- The second ring has a 2B mark.

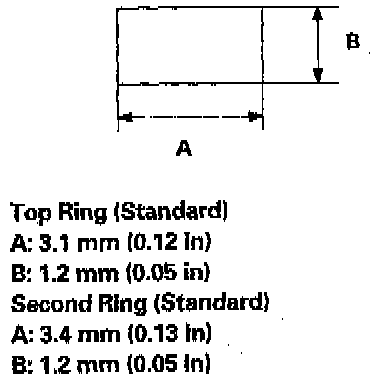

Piston Ring Dimensions:

NOTE: The manufacturing marks must be facing upward.

2. Rotate the rings in their grooves to make sure they do not bind.

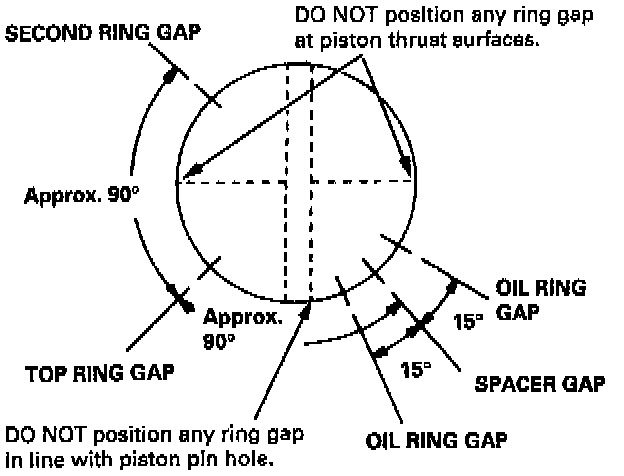

3. Position the ring end gaps as shown in image.
