Harmonic Balancer - Crankshaft Pulley: Service and Repair

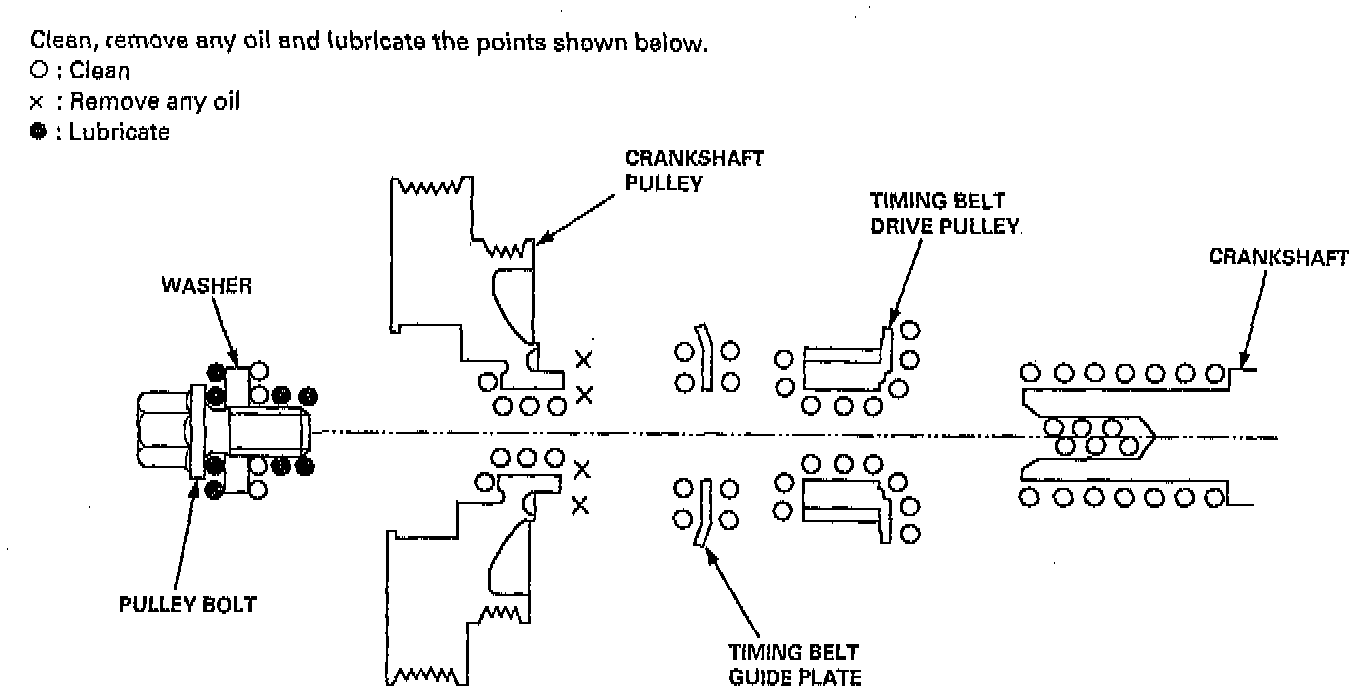

Lubrication Points:

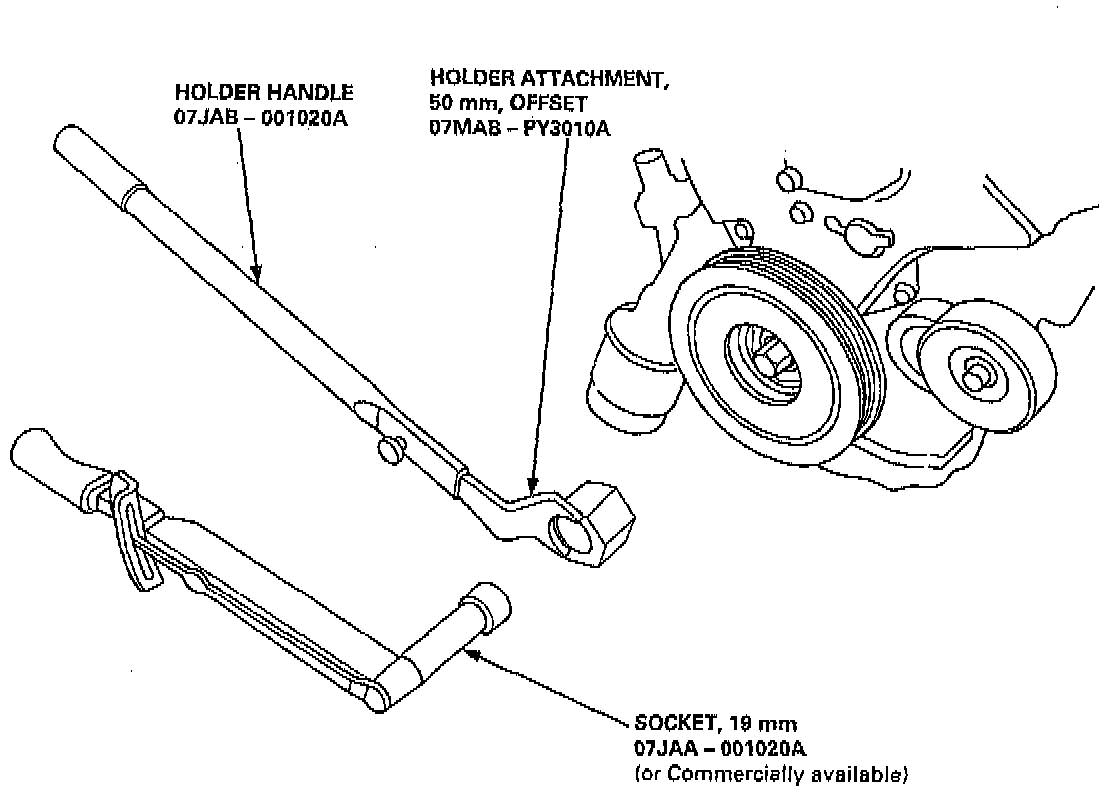

Tightening Pulley Bolt:

NOTE:

- When installing and tightening the pulley, follow the procedure in the image.
- Do not use an impact wrench when installing.

Crankshaft pulley bolt size and torque value:
- 16 x 1.5 mm
- 245 Nm (181 ft. lbs.)
