End Play Inspection

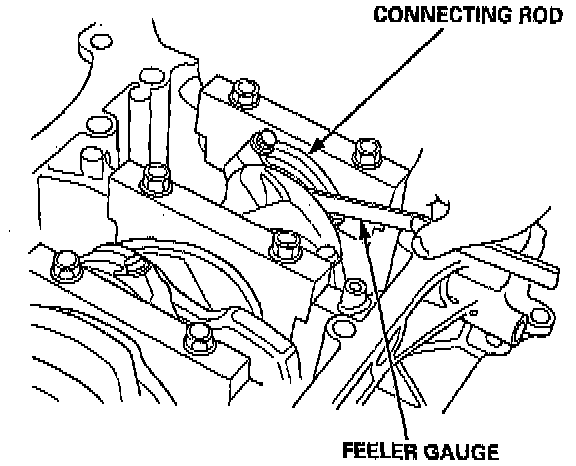

Connecting Rod End Play:
- Standard (New): 0.15 - 0.35 mm (0.006 - 0.014 inch)
- Service Limit: 0.45 mm (0.018 inch)
NOTE:
- If out-of-tolerance, install a new connecting rod.
- If still out-of-tolerance, replace the crankshaft.
Connecting Rod End Play:
- Standard (New): 0.15 - 0.35 mm (0.006 - 0.014 inch)
- Service Limit: 0.45 mm (0.018 inch)
NOTE:
- If out-of-tolerance, install a new connecting rod.
- If still out-of-tolerance, replace the crankshaft.
