Lost Motion Assemblies

Inspection Procedure

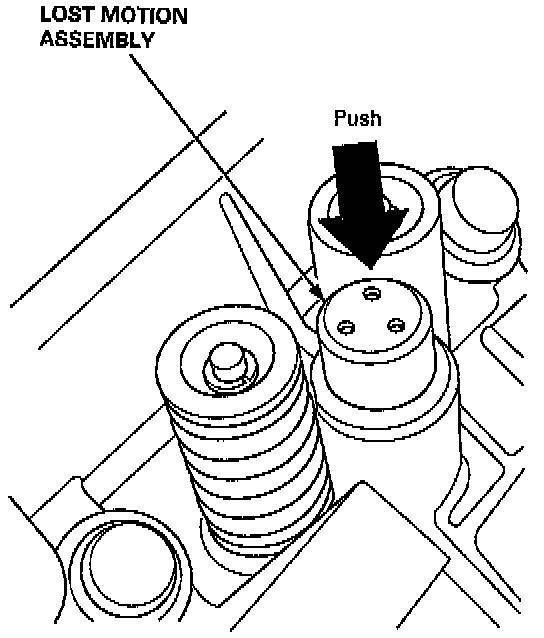

Pushing the lost motion assembly (see image) gently with the finger will cause it to sink slightly. Increasing the force on it will cause it to sink deeper.
- If the lost motion assembly does not move smoothly, replace it.
