Air Delivery
Air Delivery

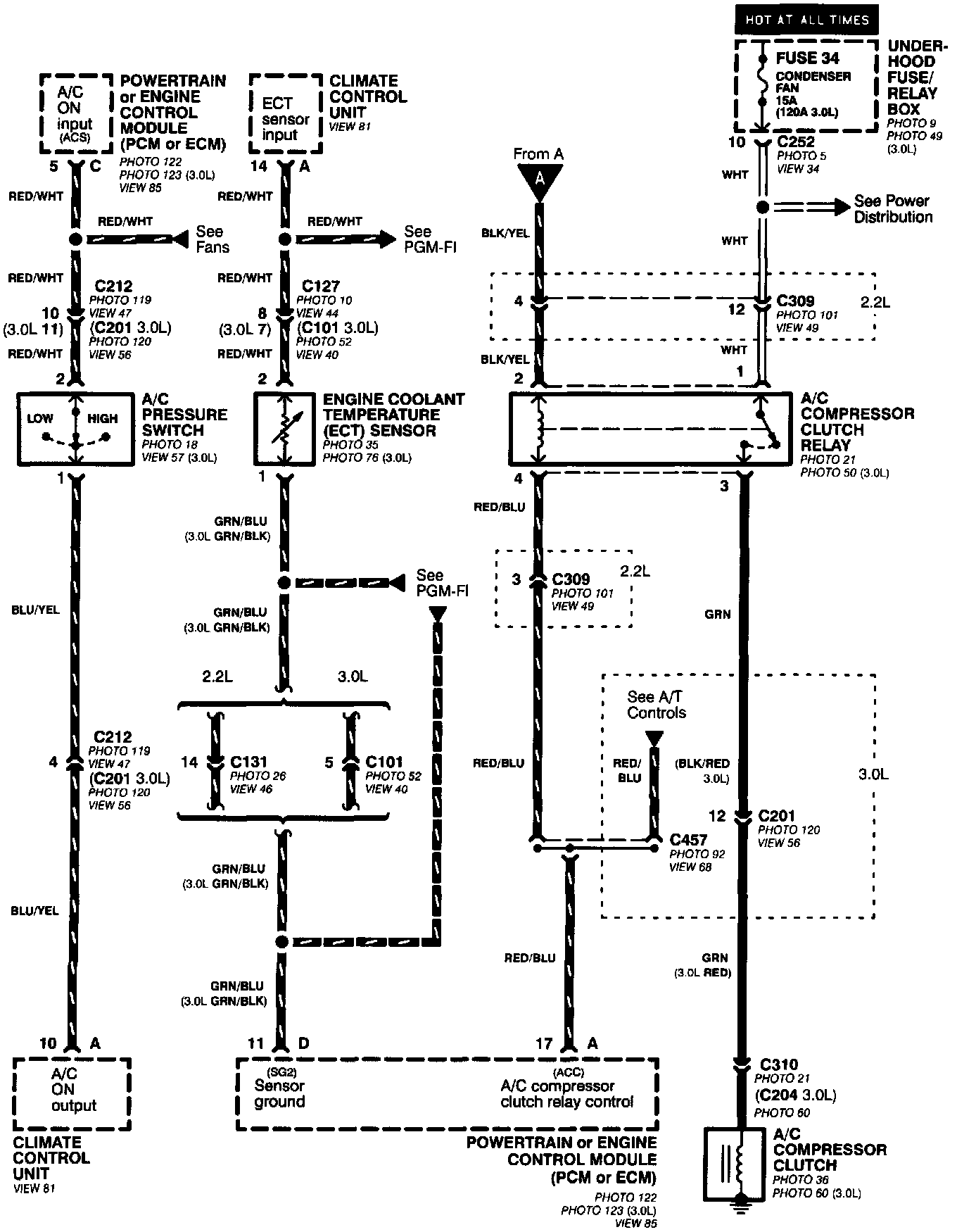

Air Delivery And A/C Compressor Controls (Part 1 Of 3):

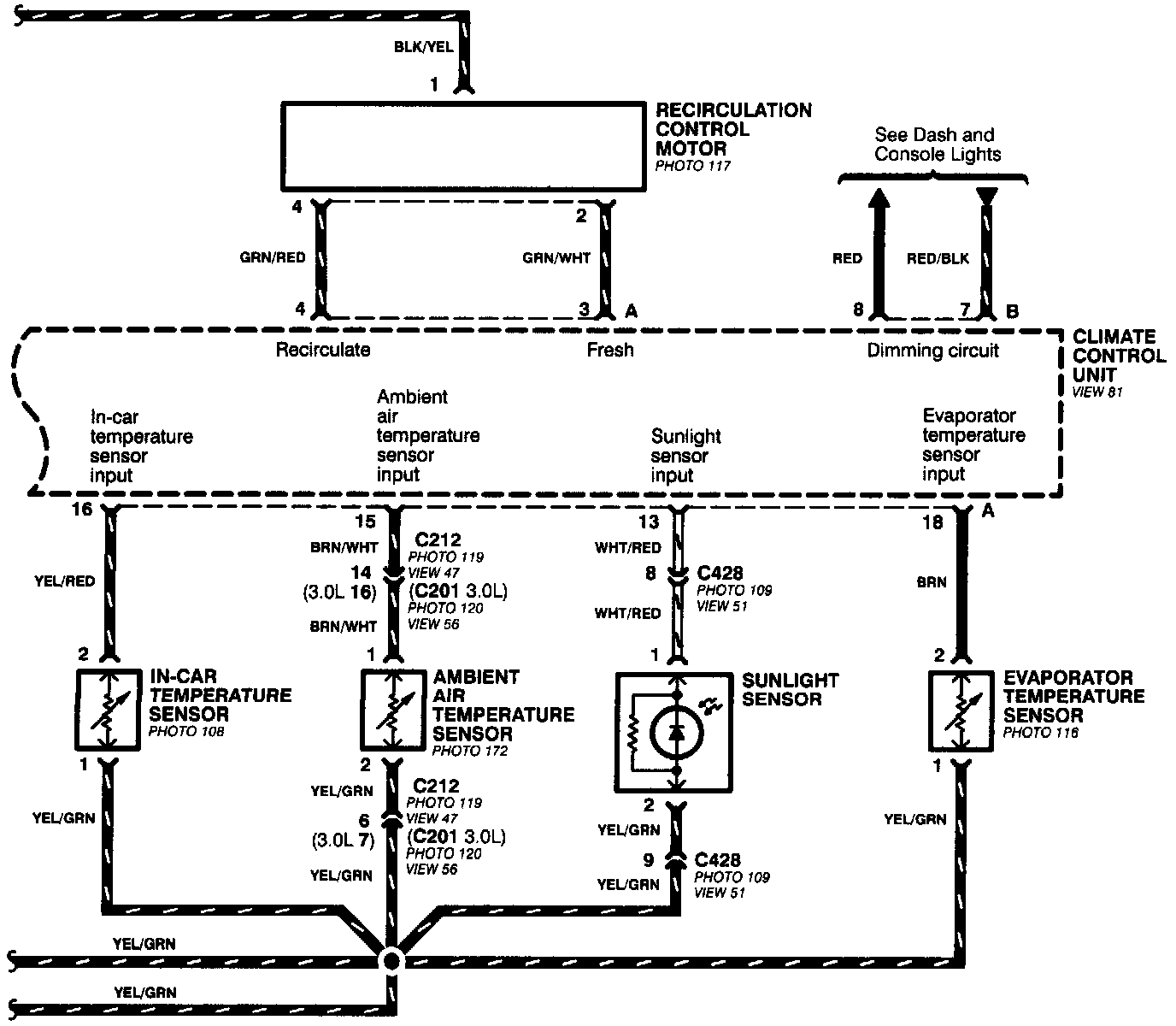

Air Delivery And A/C Compressor Controls (Part 2 Of 3):

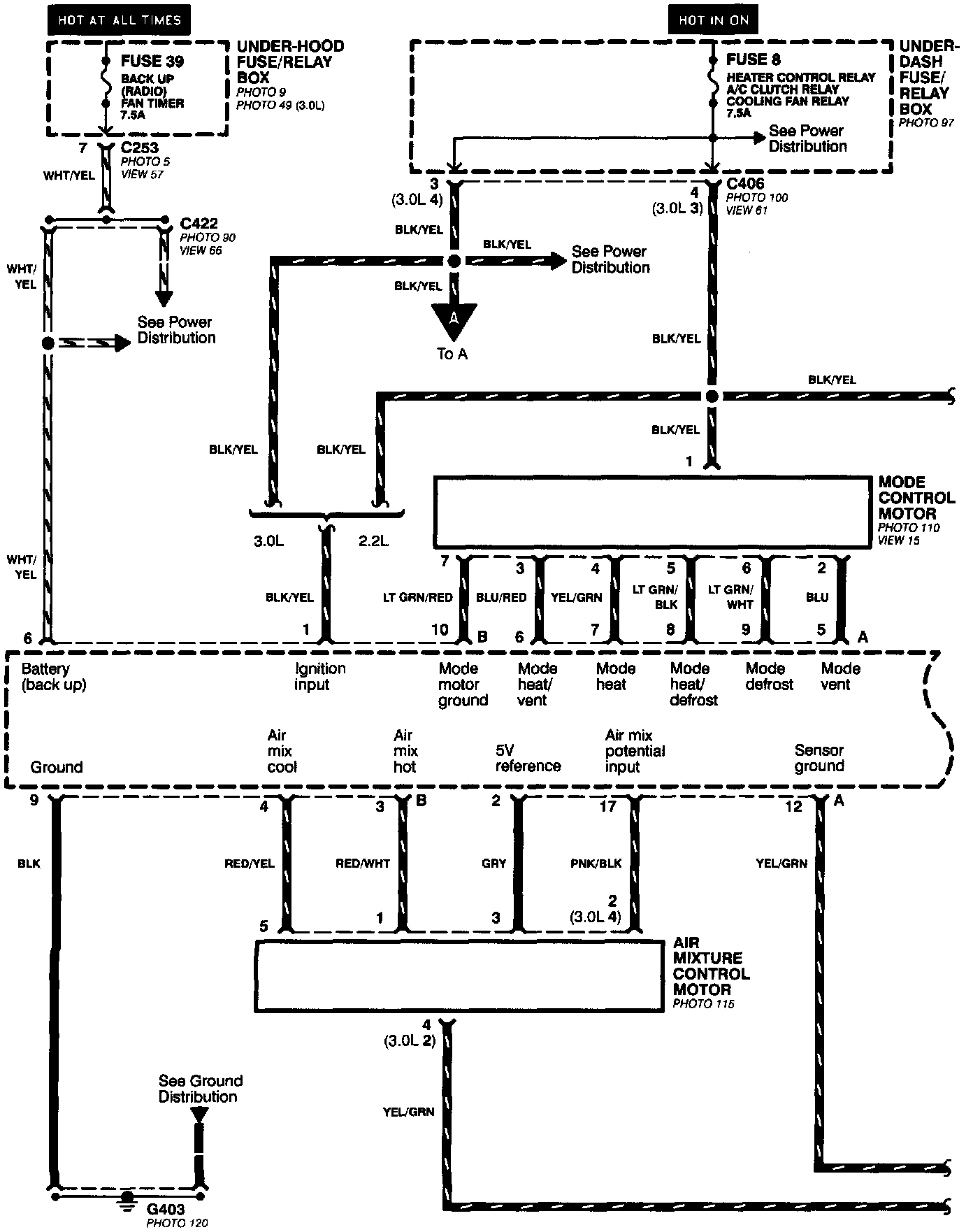

Air Delivery And A/C Compressor Controls (Part 3 Of 3):
